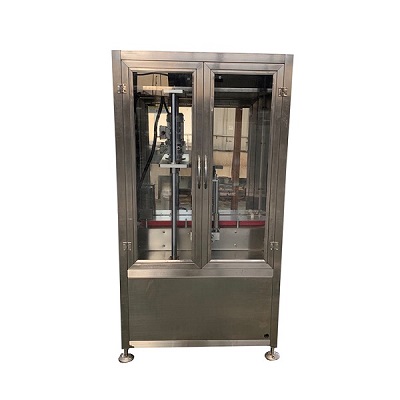

Technical features of CDNG-1 Automatic capping machine

2023.02.20

CDNG-1 Automatic capping machine is suitable for the packaging process of liquid filling in pharmaceutical, oral liquid, beverage, health care products, food, and other industries. This machine adopts oscillating bottle unscrambling and disc positioning filling, with a reasonable design. Quantitative filling, accurate measurement, especially suitable for liquid medicine filling in 1ml-10ml bottles. It is filled with a single-head peristaltic pump and made of 316L stainless steel. The working surface is protected by stainless steel, and the whole machine complies with GMP requirements. The transmission of machines adopts mechanical transmission, the transmission is accurate and stable, and there is no air source pollution and errors in the coordination of various mechanisms. When working, the noise is low, the loss is low, the work is stable, and the output is stable, especially suitable for the production of small and medium batches!

CDNG-1 Automatic capping machine has a novel and unique design, intelligent mechanical torque control, and is very convenient to operate and adjust. When the bottle is running forward, the bottle cap is automatically tightened by three sets of capping wheels. It can be used not only for stand-alone production but also as an ideal model for in-line production. It can be easily upgraded to a complete automatic capping machine. We have lifting type, swashplate type, oscillating type, and other capping systems, which can be selected according to actual needs. It is suitable for caps and screw caps of different materials and specifications. )build. Suitable for screw caps, anti-theft caps, anti-child caps, press-fit caps, etc.

Working principle of CDNG-1 Automatic capping machine

Manually put the bottle in the hopper, turn on the button, and the bottle unscrambler automatically unscrambles the bottle. The main engine is started, and after the bottle arrives at the turntable, the turntable will bring the bottle to the filling station; the disc is used for positioning and filling, and after the filling is completed, the bottle is automatically brought to the capping and screwing station, where the cap is automatically capped and screwed. The bottle is automatically ejected after the cap is screwed.

Technical features of CDNG-1 Automatic capping machine

1. The linear design of the automatic capping machine makes the assembly line convenient and beautiful;
2. CDNG-1 Automatic capping machine adopts imported frequency converter for host speed, which can be adjusted steplessly;
3. The strong electromagnetic left-handed cap torque is used, which completely solves the disadvantages of the traditional mechanical friction plate when the cap is screwed tightly and sometimes loosely;
4. The structure is compact and reasonable, and it can be easily linked with other equipment to form a line, and the dust cover is optional;
5. There are lift-type, swash-plate, and vibration-type cover drop systems, which can be selected according to actual needs;
6. When the bottle and cap change, there is no need to replace the parts and adjust it on the equipment;
7. High qualified rate of cap screwing, fast speed, convenient operation, and maintenance, etc.;
8. CDNG-1 Automatic capping machine capping wheel with clutch device. Therefore, it is ensured that the screw cap is in place without being too tight to prevent damage to the bottle cap, and two sets of clamping belt mechanisms are attached to make it suitable for unstable or tall bottles;
9. The whole machine is made of stainless steel and aluminum alloy.
