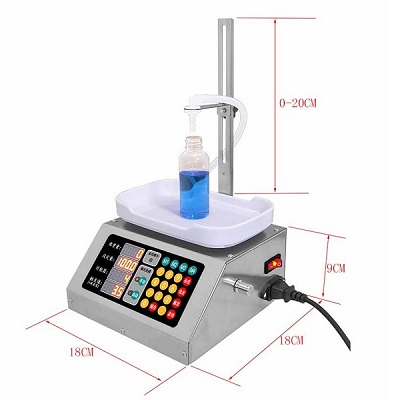

Principle of CSY-1200 Peristaltic pump liquid filling machine
CSY-1200 Peristaltic pump liquid filling machine is a tunnel-type filling machine, suitable for filling non-granular liquids such as pharmaceuticals, chemicals, and laboratories. No noise, easy to operate and use.
CSY-1200 Peristaltic pump liquid filling machine uses a servo motor to drive the peristaltic pump head to work and fills through pulses. The micro-filling has high measurement accuracy, low failure rate, and stable and reliable performance. The LCD screen intelligent control panel is more simple and more convenient to operate. Imported silicone tubes are used for materials passing through the pipelines, which are durable. If corrosive materials are filled, imported corrosion-resistant pipelines can be used. At the same time, the equipment has a suction function to prevent dripping, and the pipelines are easy to take out and easy to clean. The whole chassis is made of 304 stainless steel, which is durable. Desktop small and space-saving design, easy to carry and move. It can be used to work on the assembly line. It can be equipped with multiple filling heads and can be customized according to the actual needs of customers.
The main purpose of the CSY-1200 Peristaltic pump liquid filling machine
It can be filled with most types of liquids, including liquids with high viscosity. Such as various pharmaceuticals, chemicals, oils, cosmetics, food, and other non-granular liquids; high filling accuracy, suitable for laboratory use.
Principle of CSY-1200 Peristaltic pump liquid filling machine
1. The distribution time interval can be set to facilitate the automatic distribution of filling
2. Display flow or speed
3. Correct the set flow rate to obtain an accurate flow rate
4. CSY-1200 Peristaltic pump liquid filling machine has a communication interface, which can provide users with communication protocols, and can also customize upper computer software according to user requirements.
Features of CSY-1200 Peristaltic pump liquid filling machine
1. Driven by a servo motor, the pulse is set for micro-volume filling, with high filling accuracy, low failure rate, and stable and reliable performance.
2. The intelligent control panel with an LCD screen is easy and convenient to operate.
3. The inlet pipe of the CSY-1200 Peristaltic pump liquid filling machine can be filled with corrosive materials and is easy to clean.
4. The appearance is made of 304 stainless steel shell, which is durable.
5. Increase the suction function to prevent material dripping.
6. Small size, easy to move/carry/clean, etc.
