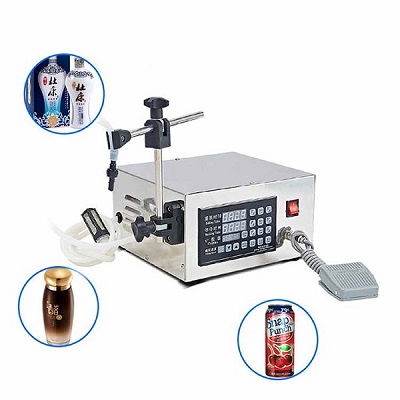

GFK280 Double head CNC liquid automatic quantitative filling machine is an innovative transformation of the Zhengzhou JYD Machine based on the production principle of previous liquid quantitative filling machines. The liquid automatic quantitative filling machine is mainly composed of a magnetic cylinder, an oil cylinder, and electrical control components. It has the advantages of a simple overall structure, a small footprint, and easy operation. The liquid automatic quantitative filling machine adopts a quantitative cup structure, and the cylinder drives the cylinder piston to reciprocate to pour the oil into the bottle quantitatively. The quantitative accuracy is high and the filling speed is fast. It is an ideal liquid-filling machine.

Applications of double-head CNC liquid automatic quantitative filling machine

GFK280 Double head CNC liquid automatic quantitative filling machine produced by Zhengzhou JYD Machine can be used for quantitative filling of pharmaceutical liquids, refreshing drinks, cosmetics, etc. The whole machine is made of high-quality stainless steel, with a novel and beautiful shape. And the quantification is correct, the packaging error is small, and the adjustment is simple. It is the most ideal small-scale equipment for quantitative dispensing of small doses of liquids in hospitals, pharmacies, pharmaceutical factories, beverage factories, daily chemical factories, scientific research experiments, etc., especially suitable for liquid dispensing in large, medium, and small pesticide factories.

Principle structure of CNC liquid automatic quantitative filling machine

1. This type of filling machine is used for filling, sub-packaging, and measuring various greases, oils, oil products, and liquid materials.
2. GFK280 Double head CNC liquid automatic quantitative filling machine is mainly composed of a magnetic cylinder, oil cylinder, and electrical control components. It has the advantages of a simple overall structure, small footprint, and easy operation;
3. The quantitative cup structure is adopted, and the oil cylinder piston is driven to move repeatedly through the cylinder, and the oil is quantitatively filled into the bottle, with high quantitative accuracy and fast filling speed;
4. Two-speed filling, first fast and then slow, to prevent material overflow when it is almost full.

Features of CNC liquid automatic quantitative filling machine

1. Simple structure, reliable, fewer faults;
2. GFK280 Double head CNC liquid automatic quantitative filling machine adopts cone piston, which has good sealing performance, accurate liquid injection, and convenient adjustment of liquid volume;
3. The parts in contact with the liquid are made of stainless steel, which is easy to load and unload, and can be used for aseptic dispensing;
4. The cylinder, push rod, and piston are made of stainless steel, which is corrosion-resistant and wear-resistant;
5. The speed is continuously adjustable and easy to operate.

Precautions for use of CNC liquid automatic quantitative filling machine

1. The oil pipeline should not be too long, generally within 3 meters.
2. The height of the oil tank and the oil surface should not exceed the bottom of the filling nozzle.
3. The input pressure of compressed air should be about 0.4-0.8Mpa, and the working pressure of the equipment should be 0.4-0.6Mpa.
4. The liquid to be filled should be free of granular impurities to prevent backflow caused by poor sealing of the return valve and inaccurate filling volume.
5. When filling, it must be filled at a uniform speed to prevent over-speed operation.
6. Make sure that the power supply voltage is stable. In an unstable state, the accuracy may be affected. If the voltage fluctuates too much, a power supply regulator can be added.
