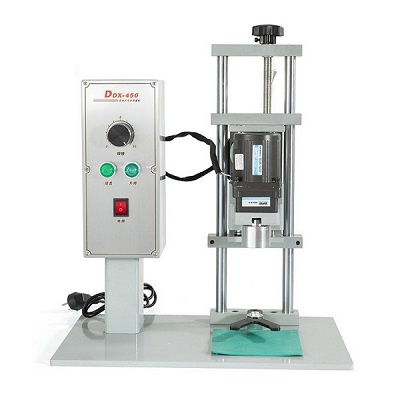

DDX-450 Electric bottle capping machine is a desktop small capping machine, a semi-automatic model, suitable for the tightening process of various types of small and large bottle caps. It has the advantage of saving production costs at the same time. This desktop capping machine mainly uses 220V voltage and 0.6MPA air source to drive the equipment and adjusts the torque through the DDK motor with adjustable torque. The twisting time, torque size, and torque cover distance can be easily and conveniently adjusted in the equipment. This also determines the flexibility and multi-applicability of the equipment. It is an economical and affordable small machine commonly used in the assembly line of daily chemical factories.

DDX-450 Electric bottle capping machine is mainly used for unscrewing or tightening mineral water bottle caps, medicine bottle caps, plastic bottle caps, and various screw caps. The equipment is composed of three parts: a capping gun body, a capping head, and a multi-speed transformer, which is easy to carry around. When working, the capping head is covered above the bottle cap, and the capping head is connected to the capping gun body. Press the switch, and the capping head rotates, apply a little downward force, and the bottle cap can be tightened in 0.3-0.5 seconds. Once the cap is screwed Tight, the chuck will automatically stop rotating, indicating that you can proceed to the next bottle cap operation. The tightness of the screw cap can be adjusted by the torque adjustment nut on the screw cap gun body. Its adjustable clutch can effectively avoid damage to the bottle cap and reduce the wear of the inner plug. Due to the constant torque, the tightness of the screw cap is consistent, thus ensuring product quality. The capping gun has strong adaptability, and it can be used for bottle caps of φ10mm-50mm, as well as special-shaped caps such as aerosols and essential oils, and the effect is very good.

Principle and characteristics of DDX-450 Electric bottle capping machine

A. The whole machine includes: the host machine, aluminum screw cap chuck, and buffer inner plug. the
B. DDX-450 Electric bottle capping machine is easy to carry around and can be conveniently used to tighten or unscrew various bottle caps. Its adjustable clutch can effectively avoid damage to the bottle cap and reduce the wear of the inner plug.
C. Once the bottle cap is tightened, the chuck will automatically stop rotating, indicating that you can proceed to the next bottle cap operation. If you purchase the stand at the same time, the capping machine can be turned up easily and neatly.
D. This series of machines can effectively reduce labor intensity and ensure the quality of cap screws.

Operation steps of DDX-450 Electric bottle capping machine

1. Connect the power cord of the capping machine to the power box;
2. After the DDX-450 Electric bottle capping machine is connected to the power supply, the indicator light of the power box is on;
3. Buckle the bottle cap on the bottle mouth with your left hand;
4. Hold the capped bottle with your left hand;
5. Hold the capping machine firmly with your right hand, and align the screw head vertically with the bottle cap;
6. Adjusting the tightness of the bottle cap can be achieved by adjusting the torque adjustment nut between the rotary head and the rotary machine. If it is tightened, the torque will be larger, and the bottle cap will be screwed tighter. If the nut is loosened, the torque will be smaller and looser.
