Installation and commissioning of Pneumatic paste quantitative filling machine

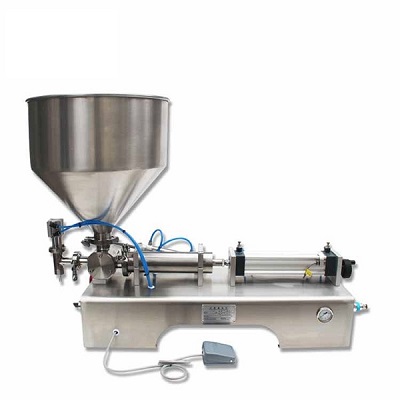

G1WG Pneumatic paste quantitative filling machine uses compressed air as power and is composed of precision pneumatic components to form an automatic filling system. It has a simple structure, sensitive and reliable action, and convenient adjustment. It is an ideal filling equipment for pharmaceutical, chemical, food, cosmetics, and other industries. The biggest advantage of the paste quantitative filling machine is that it can adopt the form of quantitative filling to improve the filling speed.
Features of G1WG Pneumatic paste quantitative filling machine
1. The electric eye automatically tracks and corrects the sealing position, and the film printing alignment is accurate.
2. The parts in contact with the material are made of stainless steel, which meets food hygiene standards.
3. The paste quantitative filling machine is equipped with a filling volume adjustment device knob and indication, which is easy to adjust.
4. Filling volume and filling speed can be adjusted arbitrarily, with a foot switch and automatic filling function.
5. The modification of various actions and parameters is all carried out on the touch screen at the front of the machine, which is highly intuitive.
6. G1WG Pneumatic paste quantitative filling machine can be equipped with some additional equipment according to your needs, such as a mixer, meat grinder, refrigerated display cabinet, etc.
Installation and commissioning of G1WG Pneumatic paste quantitative filling machine
1. After unpacking the paste quantitative filling machine, install it according to the “Installation Diagram”, and connect the compressed air source. If the air source pressure is 0.6MPa, the valve should be installed first in the compressed air main pipeline.
2. Open the right door and unscrew the oil mark of the lubricator to add clean special machine oil or sewing machine oil. Note: Do not use air pressure when refueling. It is advisable to add the oil to about 8 minutes full.
3. G1WG Pneumatic paste quantitative filling machine Introduce the air source to check whether there is air leakage on each sealing surface, adjust the air pressure to 0.3~0.4MPa to adjust the oil intake, generally spray a drop of oil after several operations, and regularly check the oil injection situation.
4. Filling volume adjustment: first rotate the filling volume adjustment handwheel, observe the scale of the indicator window to achieve the required filling volume, and at the same time adjust the suction and discharge speed to achieve a satisfactory filling effect, and measure the filling with volume, and then correct the filling volume.
Maintenance of common sense of G1WG Pneumatic paste quantitative filling machine
1. It is very important to control the temperature during the operation of the Pneumatic paste quantitative filling machine. If the working environment is generally high temperature and usually
The wind conditions are not very good, which will also affect the running speed of the paste-filling machine.
2. After G1WG Pneumatic paste quantitative filling machine is used for a period of time, it should be cleaned to ensure the quality of the new filling material.
3. The lower part of the cylinder body of the Pneumatic paste quantitative filling machine is leaking, and the sealing ring needs to be replaced.
4. If it is found that the measurement is not punctual during filling, there may be debris caught in the feed check valve, and it should be cleaned in time.
5. Do not adjust the valve casually. The spring pressure for adjusting the valve should be determined by the test filling measurement and the experience of the operator.
