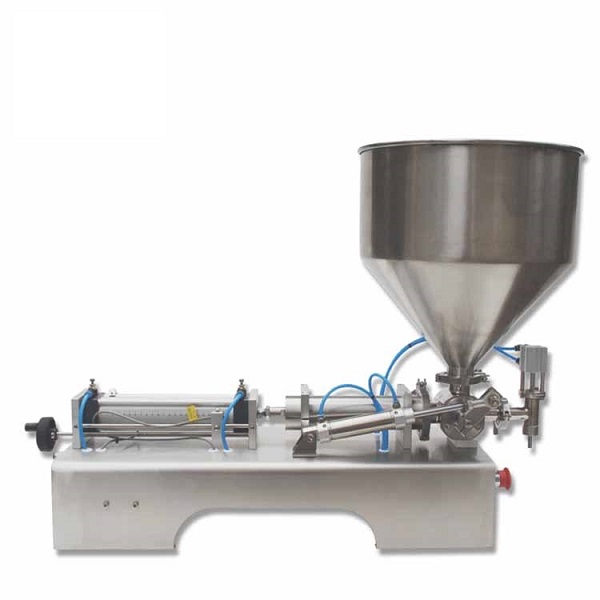

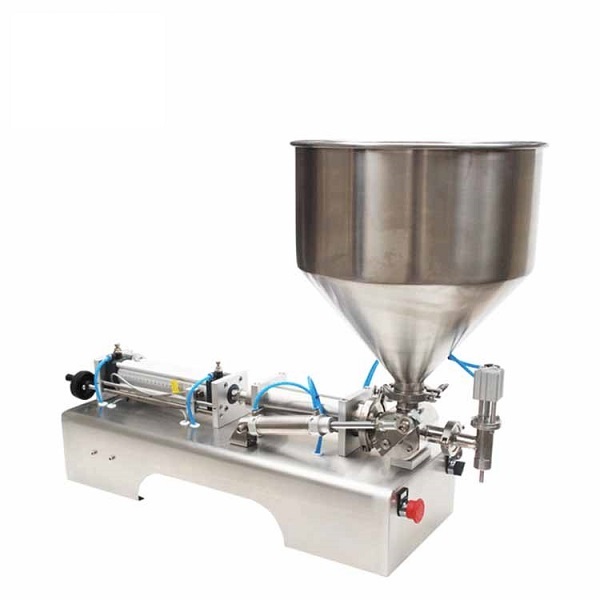

Small Vertical Pneumatic Paste Liquid Filling Machine G1WG

G1WG Pneumatic paste quantitative filling machine uses compressed air as the power to make the operation more convenient, which is specially designed for hospitals, laboratories, beauty salons, small and medium-sized enterprises, etc. It is very suitable for filling small-meter liquids and pastes.

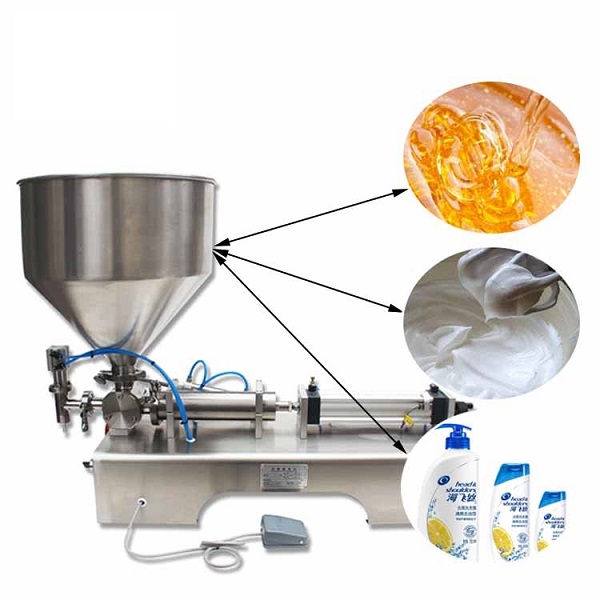

G1WG Pneumatic filling machine has reasonable structure, compact size, reliable performance, accurate quantification, and convenient operation. The power part adopts pneumatic structure, and the material contact part is made of 304L stainless steel, which conforms to GMP certification. According to the needs of users, the filling volume and filling speed can be adjusted arbitrarily within the range of models, and the filling accuracy is high. The filling head adopts anti-drip and lifting filling device.It is suitable for the filling of liquids, ointments, small bottles of hotel shampoo, shower gel, and other materials. Users can set the filling capacity according to their needs.

horizontal pneumatic liquid filling machine

Pneumatic Filling Machine Advantages

Stable filling;
Quantitative filling;
Thickened fuselage;
High filling accuracy;
Stainless steel material;

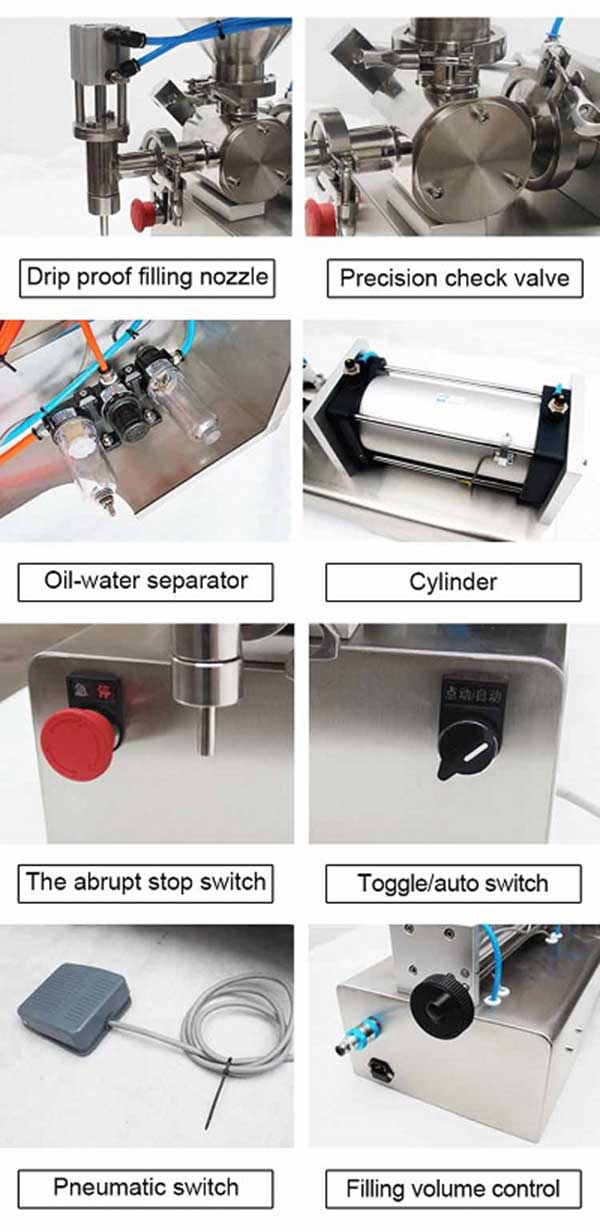

Pneumatic Filling Machine Parts

pneumatic filling machine parts

Paste Filling Machine Features

1 Manual/automatic
Get started quickly to meet different operational needs;
2 Filling nozzles
Stable filling with stainless steel outlet, high filling precision, anti-drip filling;
3 Cylinder fine grinding
Using fine material, good wear resistance, corrosion resistance, high temperature resistance, not easy to deform, long service life;
4 Kinds of accessories
Refined rotary valve Filling nozzles of various sizes Guaranteed quality, long service life, free switching, optional control methods according to your preferences;

filling machine applications

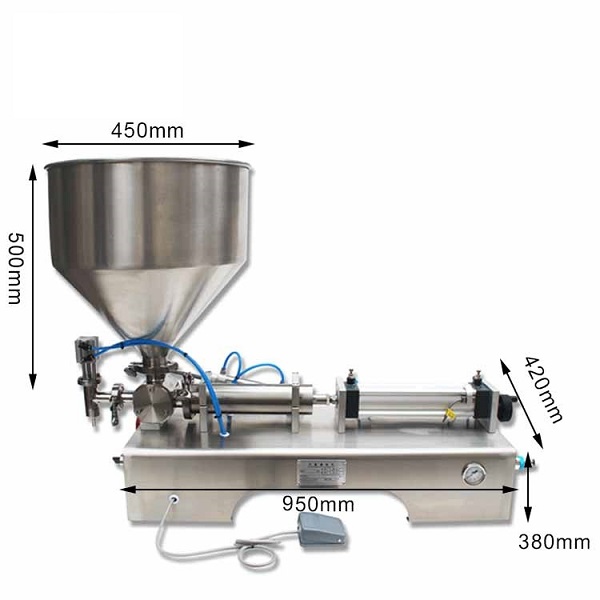

G1WG Small Filling Machine Technical parameters

Model: G1WG
Working Method: Pneumatic, work with air compressor
Filling Category Paste and Liquid
Number of Filling Heads One/Double/Multiple
Working Speed: 15-35 Cans/min
Filling Range: 50-500ml
Filling Nozzle Diameter: ≥4mm
Filling Accuracy: ≤±1%
Hopper Volume: 30L
Working Pressure: 0.4-0.9MPa
Anti-drip function: Yes
Can be with Heater Mixer Yes
Power Supply 220V/110V  50HZ/60HZ

Here is the pneumatic filling machine youtube video working process in our factory for your reference!!

The pneumatic filling machine is single head, we can support double heads,four heads penumatic filling machine according to customer’s specific request!!If you also interested in the pneumatic filling machine, welcome to contact us freely to get more details online!!
