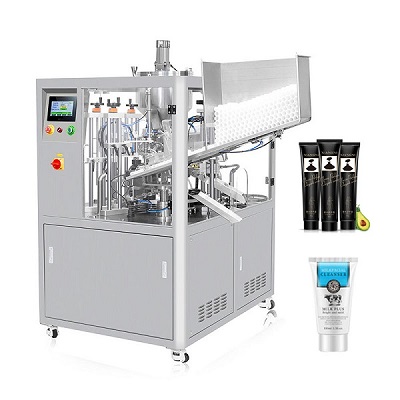

Composition system of HX-009 Full-automatic filling and sealing machine
HX-009 Full-automatic filling and sealing machine is a high-efficiency sealing equipment composed of various parts. The structure of the automatic filling and sealing machine is complex and composed of different functional systems. Then everyone is using automatic filling What systems should the sealing machine pay attention to, and what are the specific functional characteristics of these systems? Let me introduce the characteristics of each system of the automatic filling and sealing machine.
HX-009 Full-automatic filling and sealing machine: Temperature control range: 0-400°C Frame: Made of all stainless steel (except for the motor box plate), acid-resistant aluminum template drive: precision cam divider step-by-step gap operation, high-performance Reducer; stable transmission, small impact, and accurate positioning. Sealing: secondary heat sealing, the sealing pressure is adjustable.
Power about 6KW Output: about 1500-1800 boxes/hour. The box size is based on the sample, and the filling volume is 450g (adjustable). Rated air pressure: 1.0-1.2Mpa. Equipment size: 6000*700*1750mm Weight: 1500KG The machine works every 4 seconds and seals 2 boxes at a time. External 3m conveyor belt.
Advantages of HX-009 Full-automatic filling and sealing machine
Before the official operation, we must first understand the production advantages of the HX-009 Full-automatic filling and sealing machine, and see what benefits its application can bring to the production enterprise. Therefore, its advantages are as follows:
1. The automatic operation mode of the machine can work normally, quickly, and smoothly when the operator operates alone and has very low requirements for the production environment.
2. HX-009 Full-automatic filling and sealing machine has a compact structure, reasonable design, and beautiful appearance, and the bottom is equipped with universal wheels, which can freely change the production site.
3. In the operation process, only need to set the operating parameters, the sealing requirements of the items can be well realized, the production speed is fast, and the sealing effect is also well recognized.
4. The equipment has a wide range of applications. It can seal different containers such as cups, boxes, and bowls. It can be easily realized by replacing the relevant molds. It has a high frequency of use in many industries.
5. HX-009 Full-automatic filling and sealing machine has firm sealing, twice sealing, adjustable sealing pressure, and can be easily torn or not easily torn according to user needs, thus reflecting our humanized design.
