Description

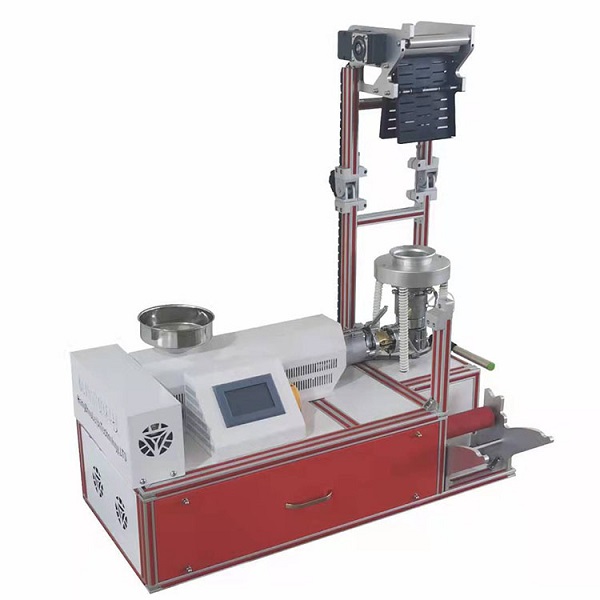

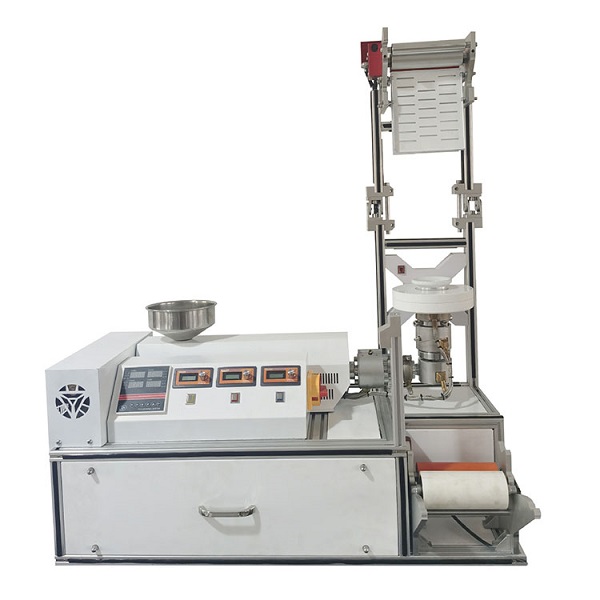

Portable laboratory summary of YZH-L16 portable laboratory film blowing machine.

Specification of YZH-L16 portable laboratory film-blowing machine

1. (4) the screw diameter: ф 16

2. The length-to-diameter ratio: is 1:30

3. The screw rotation speed: 0-120 servo motor speed control

4. Traction winding with infinitely adjustable-speed

5. The heating area:

The whole YZH-L16 portable laboratory film blowing machine adopts mica heating, the heating time of 20 minutes

Φ volume (Wx DxH): 800 x 500 x 1000 mm

Φ folding volume (WxDxH): 800 x 500 x 700 mm

Φ power: 2 f, AC220V

ΦThe weight: net weight 54 kg
