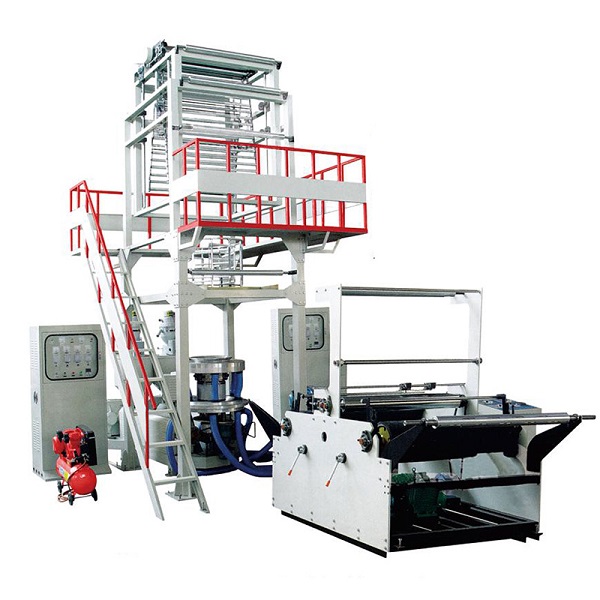

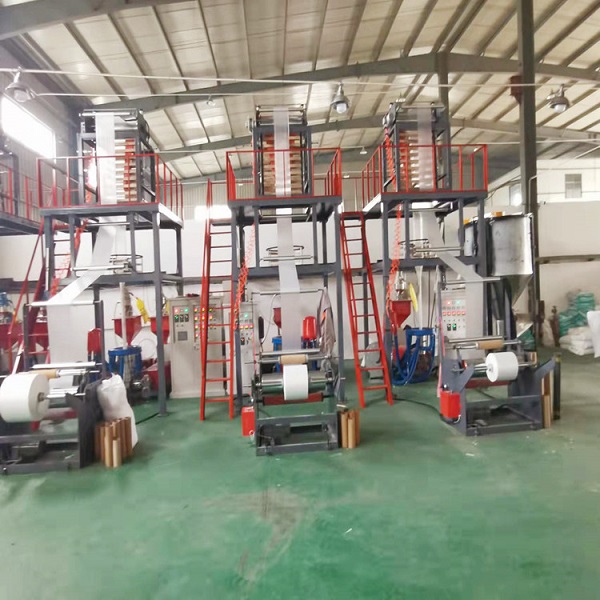

YZH-G Double-layer co-extrusion rotary die film blowing machine

YZH-G Double-layer co-extrusion rotary die film blowing machine is used for blowing the plastic laminated film of low-density polyethylene (LDPE).

  Description

High-density polyethylene (HDPE)and linear low-density polyethylene (LLDPE), etc, are widely used for packing liquid and printed bas.

Characteristics of YZH-G Double-layer co-extrusion rotary die film blowing machine

1. Double-layer co-extrusion laminated film can prolong the length for preservation of liquid package

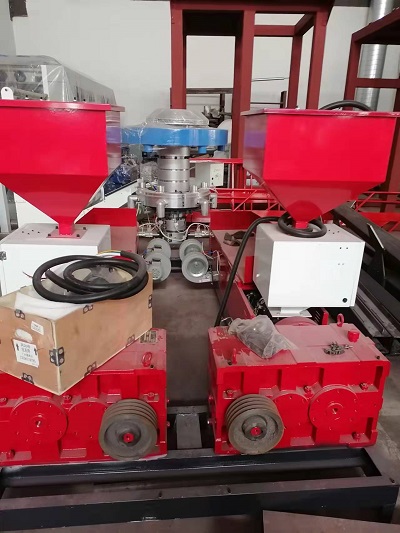

2. The cylinder and the screw stem of the extruder are made of high-quality alloy steel with optimum hardness and durable service after precision finishing and nitrogen treatment

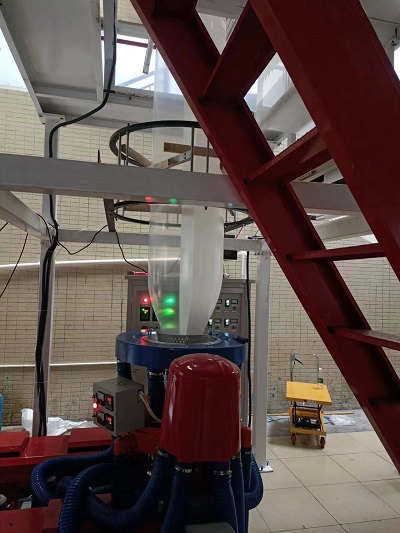

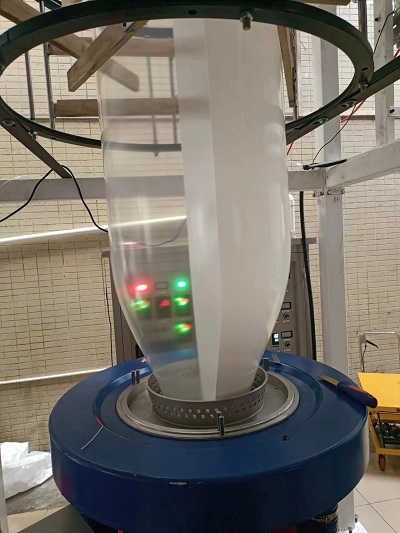

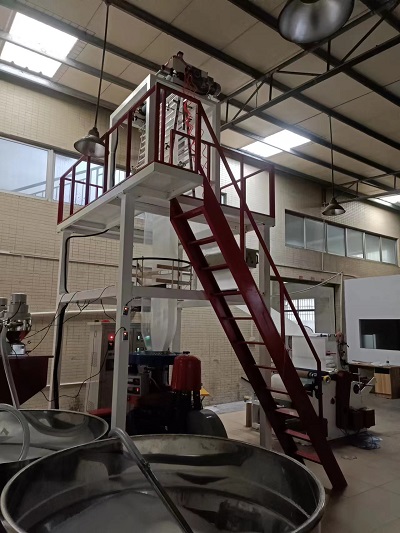

3. YZH-G Double-layer co-extrusion rotary die film blowing machine the auxiliary machine has a platform working table for making operation easy and is equipped with a bubble stabilizing ring
Double-rolling and double-cutting coiling unit adopts torque motor to keep proper tensions and make rolling even and roll changing easy.

The main technical parameters of YZH-G Double-layer co-extrusion rotary die film blowing machine

Model: YZH-G-50 YZH-G-55 YZH-G-60
Diameter of screw: φ50×2 φ55×2 φ60×2
Screw L/D ratio: 28:1-32:1 28:1-32:1 28:1-32:1
Reduced diameter of film(mm): 800 1000 1200
Single-face Thickness of film(mm): 0.015-0.1 0.015-0.1 0.015-0.1
Max Output(kg/h): 80 90 120
Power of main motor(kw): 15×2 18.5×2 22×2
Heating Power (kw): 26 30 42
Outline diameter(L X WX HX) (mm): 4200x2200x4500 4600x2400x5000 5000x2800x6500
Weight(T): 4 5 6
