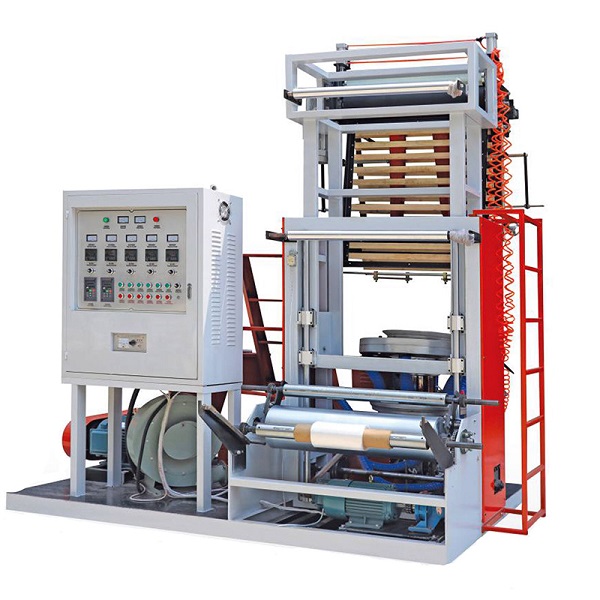

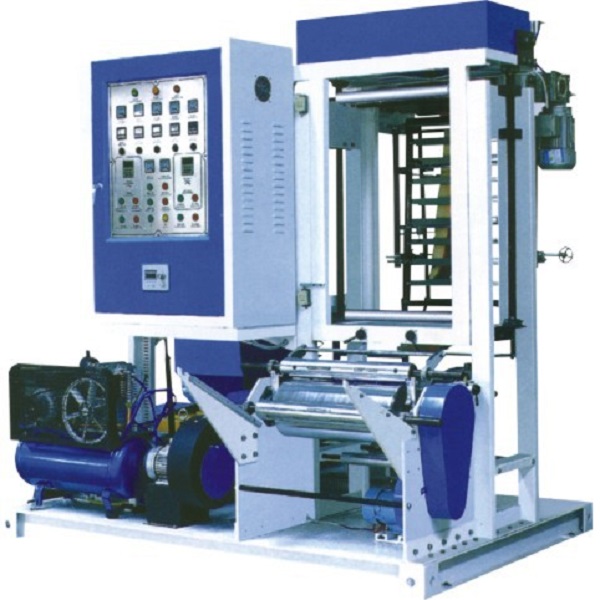

YZH-G-50\55 Mini film blowing machine

YZH-G-50\55 Mini film blowing machine extruder, cylinder, and screw rods are made of quality alloy steel that has been tried and processed in a precise way. Hence it is sound in hardness and durable in corrosion resistance.


The specially-designed screw is of sound quality in plasticizing. which helps increase the production capacity. YZH-G-50\55 Mini film blowing machine is applied to blowing plastic films like low-density polytene(LDPE), high-density polytene(HDPE ), and linear low-density polytene(LLDPE). It is widely applied to producing packing bags for foodstuff, clothing, rubbish bag, and vests ones.

The main technical parameters of the YZH-G-50\55 Mini film-blowing machine

Model: YZH-G-50 YZH-G-55
Diameter of screw: φ50 φ55
The reduced diameter of the film(mm): 100-600 200-800
Single-face Thickness of film(mm): 0.01-0.08 0.01-0.08
Max Output(kg/h): 35 50
Screw L/D ratio: 30:1 30:1
Power of main motor(kw): 7.5-11 11-15
Power of Traction motor(kw): 1.1 1.1
Heating Power (kw): 11 11
Outline diameter(L X WX HX) (mm): 2850x1900x3200 3100x2150x3200
Weight(T): 1.5T 2.0T
