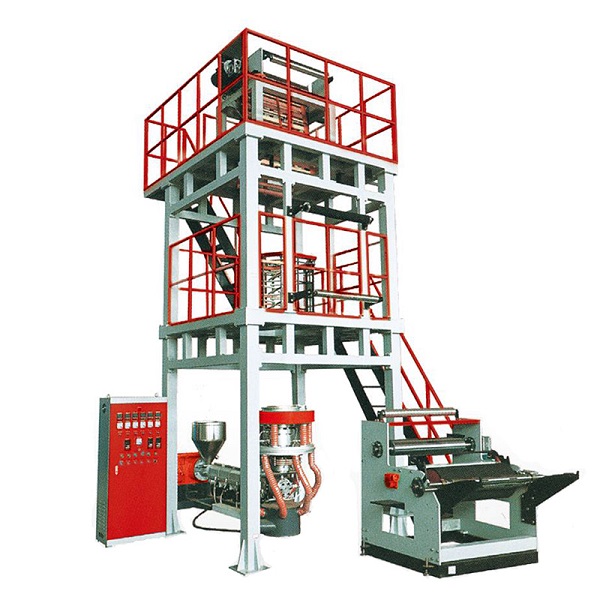

YZH-G-45/50/55 Film blowing machine line mainly produces degradable film from PLA: PBAT; PHA; PSM and filler, the machine is widely applied to producing packaging bags for foodstuff, clothing, rubbish bag and vest bags, agriculture film, etc.
Model: YZH-G-45 YZH-G-50 YZH-G-55
Suitable Materials: PLA, PBAT, PHA, PSM, FILLER PLA, PBAT, PHA, PSM, FILLER PLA, PBAT, PHA, PSM, FILLER
Diameter of screw(mm): φ45 φ50 φ55
Screw L/D ratio: 30-32:1 30-32:1 30-32:1
Screw Speed (r/min): 120 120 120
Main Motor power: 15 18.5 22
Max Fold Width of film(mm): 500 600 800
Film Thickness(mm): 0.015-0.1 0.015-0.1 0.015-0.1
Max Output(kg/h): 25-60 35-80 40-100
Electric total capacity(kw): 30 36 47
Outline diameter(L X WX HX) (mm): 5000x2800x5000 6500x3000x5000 7500x3500x5000
Weight(kg): 3000 3500 4000
If you need our products please write down any questions, we will reply as soon as possible.
