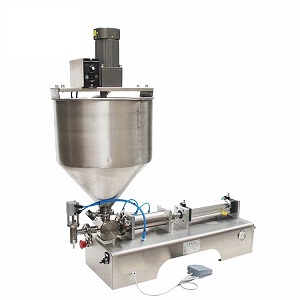

G1WG Pneumatic paste filling machine with stirring is suitable for laboratories, reagents, pharmaceutical factories, research institutes, disinfectants, injections, glucose, amino acids, iodine, iodophor, medical alcohol, 84 disinfectant, disinfectant, oral liquid, cough Quantitative automatic filling of syrup, erythromycin, ointment, ointment, frostbite cream, plaster, and other products. This machine is developed and developed for the filling needs of medium-viscosity to high-viscosity products. The whole machine consists of a storage hopper and electronic control, with a simple structure and convenient operation.

Features of G1WG Pneumatic paste filling machine with stirring

1. The pneumatic part adopts the pneumatic components of Germany FESTO and Japan SMC;
2. The piston and cylinder body of the cylinder is made of polytetrafluoroethylene and stainless steel, which meet the requirements of GMP;
3. This machine can be converted into an explosion-proof filling system according to the needs of customers;
4. Comes with stirring and heating functions;
5. Temperature control function between 30-200 degrees
6. The main power of the G1WG Pneumatic paste filling machine with stirring is the air source, and customers need to prepare their own air compressor equipment;
7. The cylinder body, casing, and hopper of the equipment are made of stainless steel, the piston is made of polytetrafluoroethylene, and the pneumatic parts are all pneumatic components, which meet the requirements of GMP.
8. Filling volume and filling speed can be adjusted arbitrarily, with a foot switch and automatic filling function, high precision, simple structure, and convenient operation.
9. The horizontal pneumatic paste-filling machine can be used as a heating device and a stirring device.

Working principle and performance of pneumatic paste filling machine with stirring

1. Working principle: G1WG Pneumatic paste filling machine with stirring uses a cylinder to drive a piston to extract and discharge materials. A one-way valve is used to control the flow of materials, and a reed switch is used to control the stroke of the cylinder to adjust the filling volume.
2. Performance: This G1WG Pneumatic paste filling machine with stirring is based on the filling machine series produced by our company, and has introduced advanced filling machine technology from abroad, and has carried out further transformation and innovation. Its structure is simpler and more reasonable. Higher and easier to operate, it is an ideal choice for your company to fill the paste.
