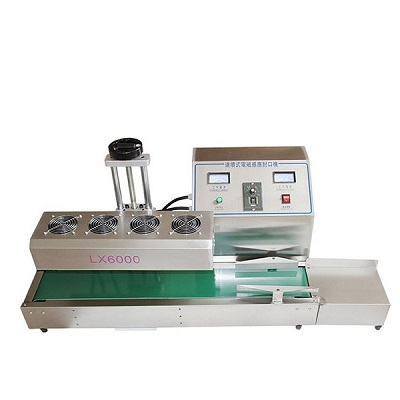

The operation of the LX6000 Aluminum foil sealing machine mainly uses the principle of electromagnetic induction to make the aluminum foil generate high heat instantly and bond the bottle mouth, so as to achieve the sealing effect. This sealing equipment is widely used in many industries such as medicine, food, pesticide, chemical industry, cosmetics, etc., to meet the continuous sealing operation of large quantities of products, it is an ideal sealing equipment at present.

Working principle of LX6000 Aluminum foil sealing machine

LX6000 Aluminum foil sealing machine host sends its ultra-high frequency current to the induction box (sealing box). The aluminum foil of the bottle mouth under the induction box generates ultra-high frequency eddy current due to electromagnetic induction, which instantly generates high temperature, and the bottle mouth plastic in contact with it also melts instantly to fuse the two, so that a layer of glue on the surface of the aluminum foil is melted and then combined with the bottle mouth material Glue to achieve high-efficiency and high-quality sealing effect.

Use tips of LX6000 Aluminum foil sealing machine

1. Before starting the machine, place the bottle to be sealed under the sealing box, and turn the lifting wheel to make the gap between the bottom of the sealing box and the bottle cap about 1-2mm. Then start the start-stop switch, the conveyor belt starts to rotate, and then put several identical bottles on the conveyor belt to check whether the bottles can pass under the sealing box smoothly (note: the gap between the bottle cap and the bottom surface of the sealing box is 1~ 2mm, neither too large nor too small). If the cap of the bottle touches the sealing box, the lifting wheel needs to be adjusted so that the bottle can pass under the sealing box smoothly on the conveyor belt.

2. According to the conveying condition of the conveyor belt, the conveyor belt adjustment screw can be adjusted, so that the conveyor belt can achieve the ideal degree of tightness and offset position.

3. Adjust the left and right baffles of the guide plate on the conveyor belt in place. When the bottle is not placed in the middle of the conveyor belt but passes the guide plate, the bottle will be pushed to the middle position of the conveyor belt by the guide plate, so that the bottle can be released from the sealing box. The center position passes through to achieve a good sealing (heating) effect.

4. Before the LX6000 Aluminum foil sealing machine starts working, determine the required heating time according to the sealing diameter and the sealing effect to be achieved, and then adjust the rotation speed knob so that the passing time of the bottle under the sealing box coincides with the required heating time for the bottle mouth. Take a few more bottles to try to seal the bottle’s mouth. If the sealing effect of the bottle is not good, it means that the heating time is not enough, and the speed of the conveyor belt needs to be slowed down. If it is yellowed or blistered, it means that the heating time is too long, and the speed of the conveyor belt needs to be increased.

5. After completing the above steps, when the sealing effect of the sealing bottle is ideal (if the effect is not good, it needs to be readjusted), the equipment can be put into formal work.
