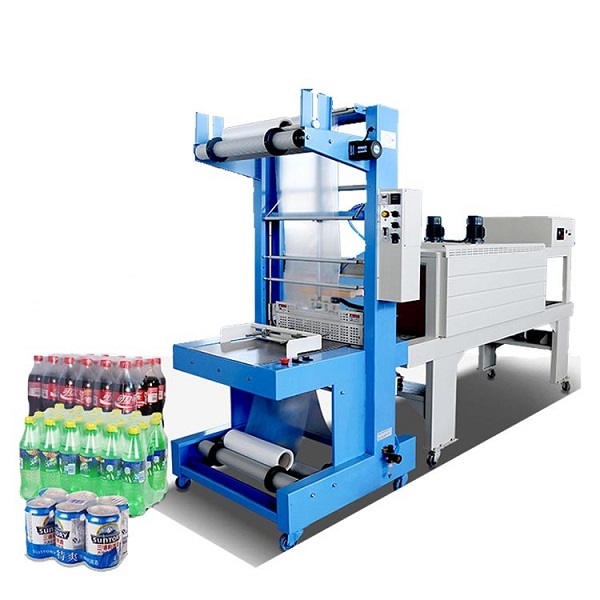

Automatic Cuff Type PE Film Sleeve Bottle Shrink Wrap Packaging Machine

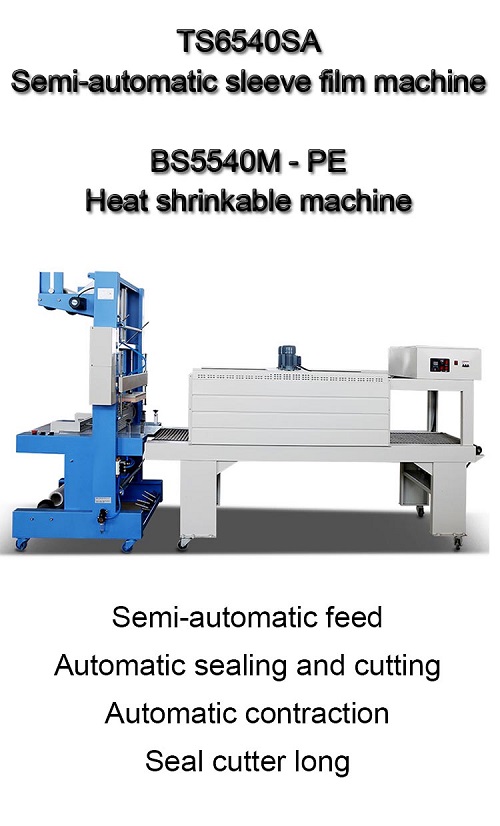

TS6540SA+BS-PE5540 Semi-automatic film wrapping machine+PE heat shrinking machine can be widely used in single, collective, or combined packaging of food, beverage, medicine, daily chemical, hardware, wood products, stationery, printing products, plastic products, glass products, electronic components, and other products.


The automatic cuff-type PE film bottle heat shrink packaging machine adopts automatic sealing and cutting, which can realize fast, efficient, and stable packaging of bottled products, saving labor costs for enterprises, improving production efficiency, and ensuring product packaging quality. PE film bottle heat shrink packaging machine is an advanced packaging equipment that is widely used in food, beverage, daily chemical, pharmaceutical, and other industries.


Scope of application: Outer packaging of ceramics, bottled beverages, cans, beer, mineral water, glass water, cartons, foam boxes, and other industries. It adopts automatic control, saves time and effort, has high efficiency, and is suitable for mass production.

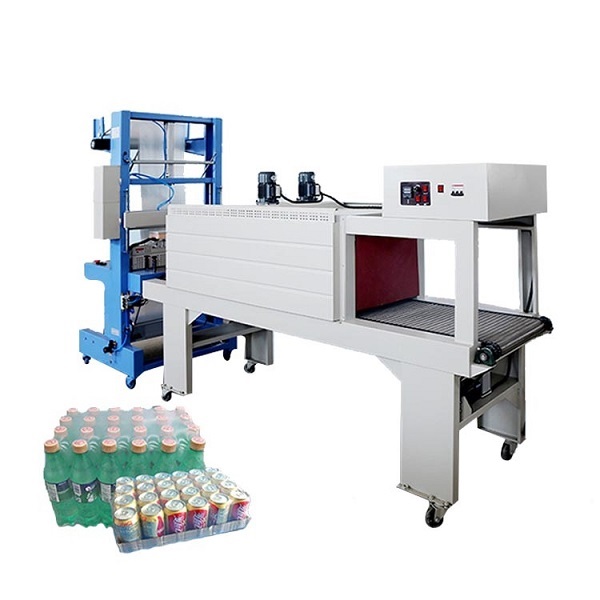

packaged products display

Automatic Heat Shrink Machine Advantages

PLC program;

Safety devices;

Powerful motor;

Hot air circulation;

Alloy sealing knife;

Photoelectric induction;

Infinitely variable speed;

Automatic roll film waste;

Digital display temperature control;

Fully automatic sealing and cutting;

heat shrink film packing machine factory details

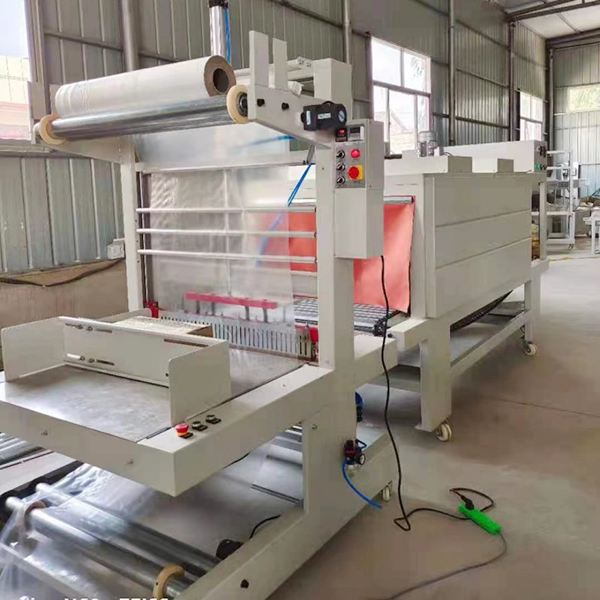

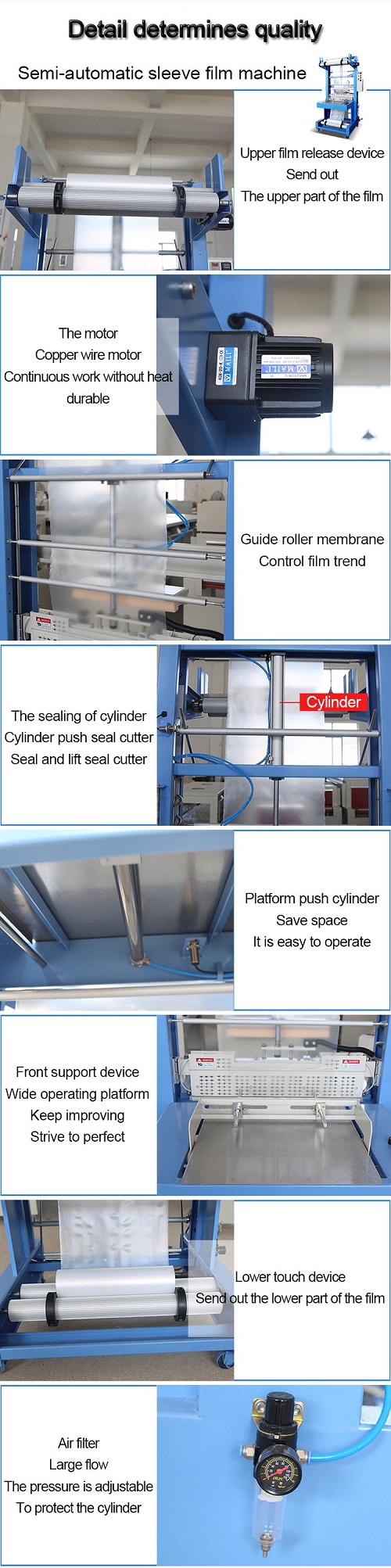

Heat Shrink Film Packaging Machine Details

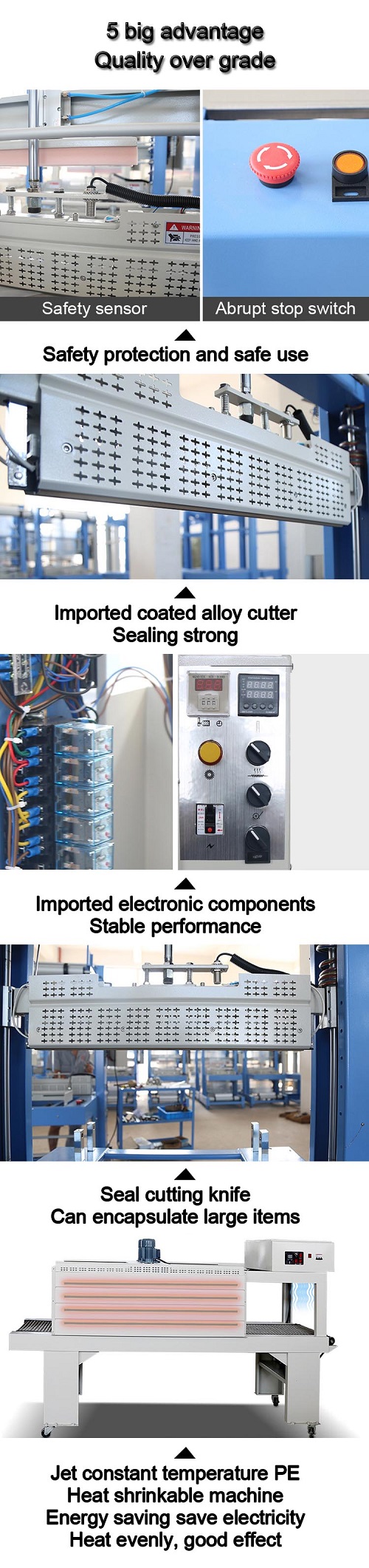

Comprehensive protection
The sealing cutter is equipped with a sensor. When the cutter product automatically pops up, there is also an emergency stop switch for protection;

Imported coated alloy knife
It adopts a foreign DuPont Teflon-coated alloy knife with anti-stick and high-temperature resistance. The sealing line is strong and will not crack or smoke;

Electronic component
Using well-known domestic electronic components, the temperature can be adjusted according to the thickness of the film, so there is no need to worry about continuous cutting;

Jet shrink furnace
It uses an electronic speed regulator to adjust the speed, which can be adjusted fast or slow. It uses stainless steel for heating, which is evenly heated and durable;

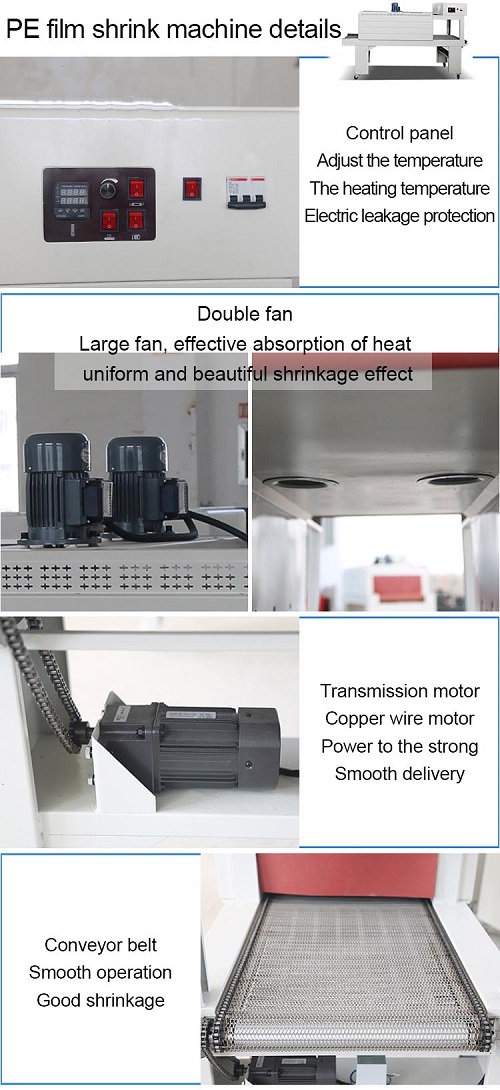

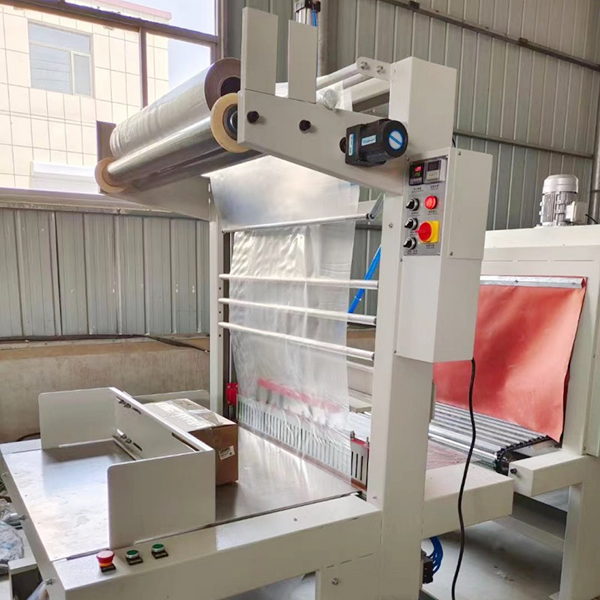

shrink film packaging machine details

Heat Shrink Wrap Packaging Equipment Parameter

 Model TS6540SA
Voltage 220V/50-60HZ
Power 1.5KW
Packing speed 8pcs/min
Max. packing size 400*320*380mm
Max. sealing size 650mm
Machine Size(mm) 920L*1040W*1920H
Weight 300KG


Model BS-PE5540
Voltage 220V/50-60HZ
Power 18KW
Tunnel size(mm) 1500L*550W*400H
Temp. Range 0-300℃
Max.Load 40KG
Speed 0-10m/min
Machine Size(mm) 2500L*750W*1400H
Weight 240KG
Heat Shrink Wrap Packaging Equipment

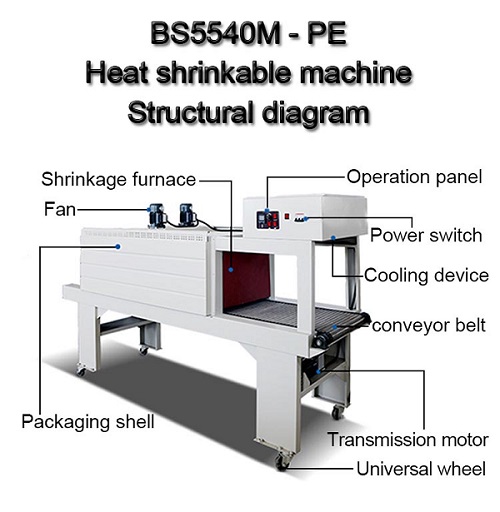

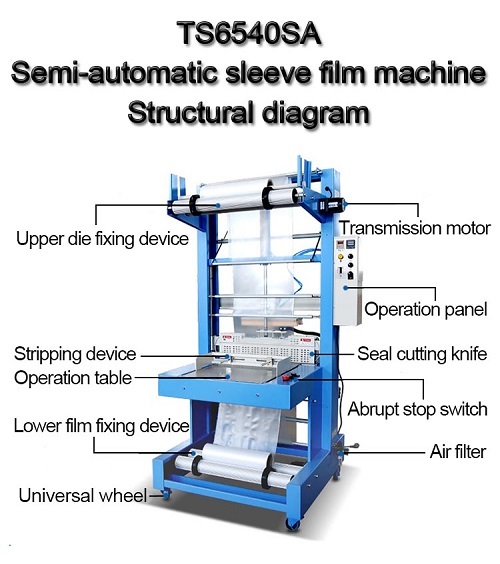

Automatic Heat Shrink Machine Features

The heat shrink packing machine has stable performance and a long service life;

The furnace adopts louvered fan blades, which have a good hot air circulation effect;

Adopting advanced German technology, its main accessories are all domestic brands;

The PE film heat shrink packaging machine adopts chain-net conveying and operates smoothly;

The heat sealing knife uses aluminum alloy + stainless steel heating plate, which has a long service life;

The film frame is equipped with a film-pulling motor, which avoids problems that occur when using large rolls of PE film for sealing and cutting;

The cutting knife of the laminating machine adopts an alloy blade, is coated with Teflon, a non-stick knife, and has a good sealing and cutting effect;

This series of cuff-type shrink packaging machines is suitable for heat-to-shrink packaging of cans, mineral water, beer, glass bottles, cartons, and other products without or with bottom trays;

The automatic laminating machine only requires manual placement of products, and the machine automatically completes a series of actions such as pushing, sealing, cutting, and heat shrink packaging, greatly reducing labor intensity and improving work efficiency;

our factory details

​The fully automatic bottle shrink packaging machine is an efficient, stable, and intelligent packaging equipment that can meet the needs of different industries for product packaging. As the market continues to improve packaging quality and production efficiency, this equipment will be more widely used and developed in the future. If you are also interested in a fully automatic casing heat shrink machine, please feel free to leave a message with us online to get a free quote!!
