Description

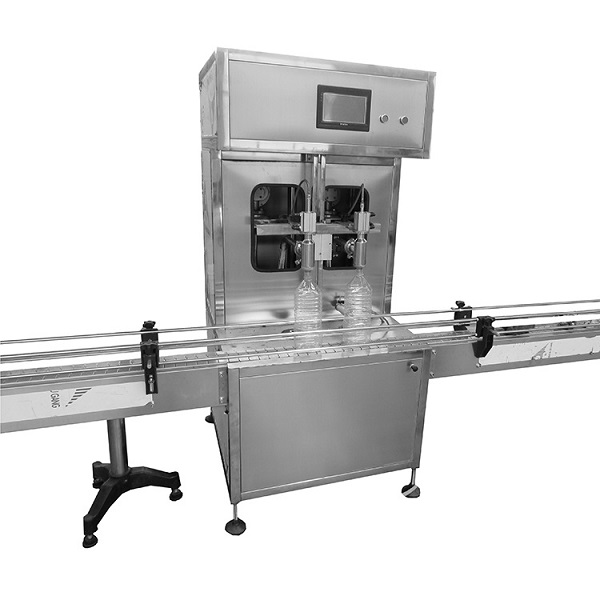

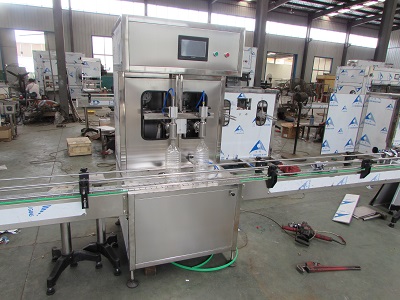

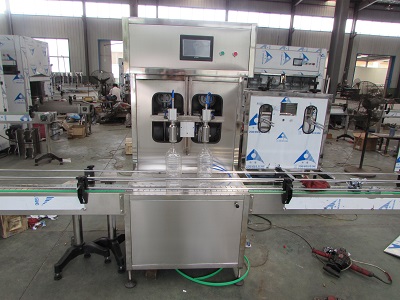

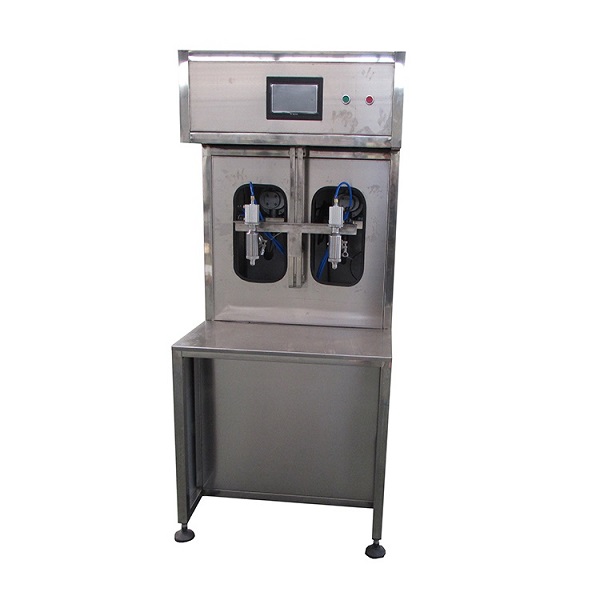

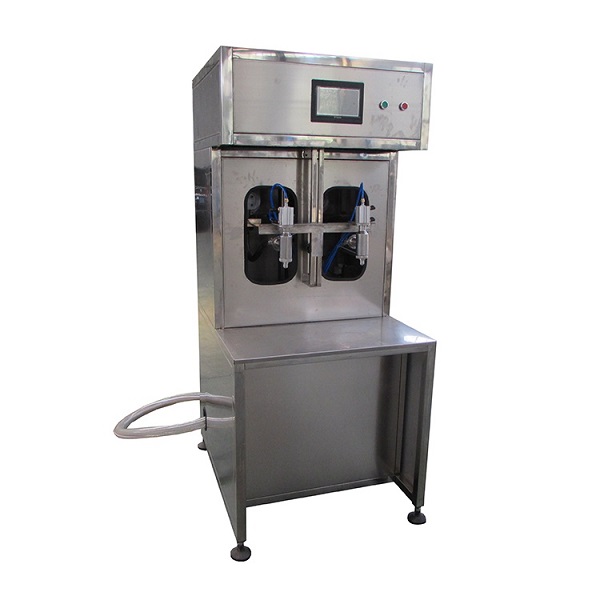

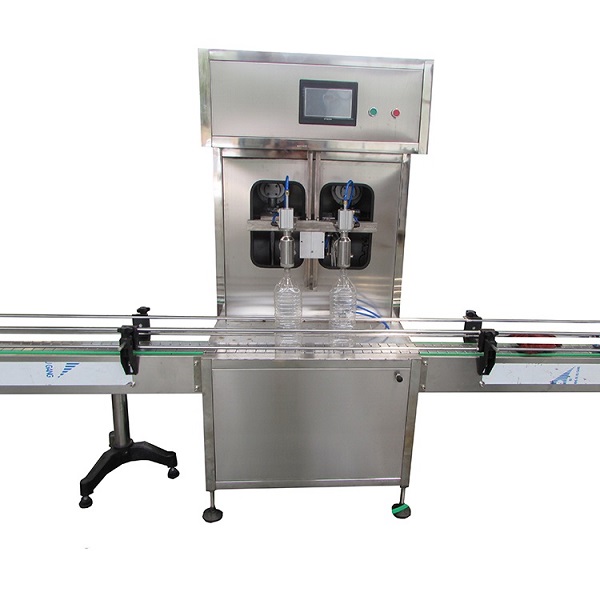

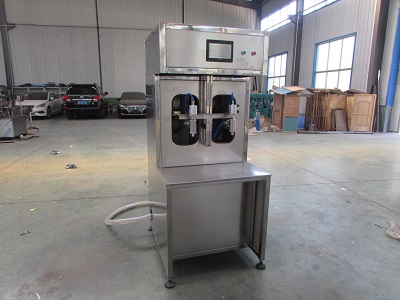

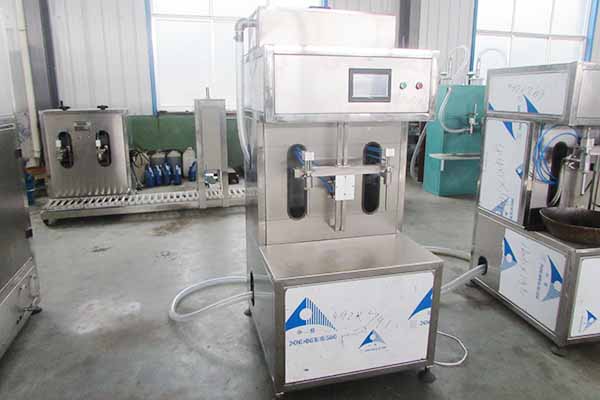

The semi-automatic flow meter filling machine includes a flow meter and several filling heads. It achieves precise filling by controlling the flow rate of the flow meter. This equipment can often be adjusted to the different requirements of the product to ensure accuracy and consistency for every filling. This filling machine has the features of a compact structure, simple and convenient operation, full functions, low energy consumption, low investment, and a high degree of automation. It is usually used in chemical, food, pharmaceutical, and other industries to meet the filling needs of different products.

Applicable products: coatings, inks, paints, lubricants, petrochemicals, fine chemicals and other liquid, fluid and paste products;

The semi-automatic flow meter filling machine’s working principle is usually to achieve filling by controlling the flow of liquid. When the liquid enters the filling head, the flow meter will measure the flow of the liquid and control the flow of the liquid according to the preset parameters to ensure the accuracy of each filling. This equipment is usually equipped with an automatic control system that can monitor and adjust various parameters during the filling process to ensure the accuracy and stability of the filling.

Semi-Automatic Flow Meter Filling Machine Advantages

1. Pneumatic components and main electrical components are all standard components;

2. PLC microcomputer control, easy to operate, can be completed by one person, saving labor;

3. The filling speed and filling range can be adjusted as needed to achieve multiple functions in one machine;

4. The filling head adopts vacuum suction and anti-drip devices, which will not produce bubbles during filling and reduce losses;

5. The semi-automatic flow meter filling machine is made of stainless steel, with stable and reliable performance, easy to clean, and should not be damaged;

6. The built-in frequency converter has a two-speed filling function of fast first and then slow to avoid material overflowing the container due to too fast filling speed;

Here is the flow meter filling machine youtube video working process in our factory for your reference!!

Flow Meter Filling Machine Parameter

Flow Meter Filling Machine Features

1. The filling bottle distance and bottle height are easy to adjust;

2. The main pneumatic and electrical components are all from stable brands to ensure stable system performance and excellent quality;

3. The liquid supply method can be a high-level tank or pump-pressure supply. Pump-pressure supply greatly improves the production capacity;

4. The unique multi-style filling heads and back-suction system designed to prevent dripping ensure that the production site and packaged finished products are not contaminated by liquid materials;

5. The 3‰ high-precision flow meter is equipped with a full-color touchscreen human-machine interface controlled by a PLC computer to ensure that the capacity adjustment is simple, fast, and accurate. It is unmatched by any form of volumetric filling machine;

6. It can be equipped with a high-efficiency magnetic induction sealing device, and the aluminum foil sealing prevents moisture and overflow, which greatly improves product quality. The unique induction plate and cooling system of the transistor sealing device make it safe and efficient, and the sealing effect is excellent.

Overall, the semi-automatic flow meter filling machine is an efficient, precise, and reliable equipment that can meet the needs of liquid filling in different industries. Its advanced technology and design make it an indispensable piece of equipment in the production process, providing convenience and benefits to enterprises. With the continuous development of technology, I believe that semi-automatic flow meter filling machines will have wider applications and development.
