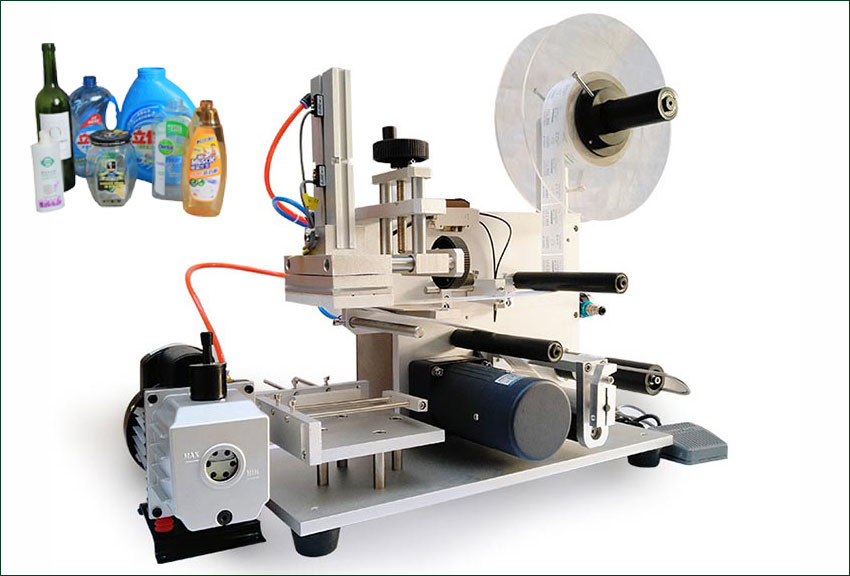

MT-60 Semi-Automatic Label Applicator Flat Bottle Labeling Machine

MT-60 Semi-automatic flat labeling machine is suitable for flat bottle labeling in pharmaceutical, food, daily chemical, and other industries. Desktop design, simple structure, compact appearance, and powerful function. It adopts card position adjustment, easy-to-switch labeling of different workpieces, advanced electric eye, and high detection sensitivity of objects and labels.


Semi-automatic flat labeling machine is a piece of equipment used for labeling. It is simple and easy to use and is suitable for labeling flat objects. This labeling machine can improve production efficiency and ensure accurate label placement. Suitable for self-adhesive labels, self-adhesive films, electronic supervision codes, barcodes, etc., and suitable for labeling flat bottles such as plastic bottles, glass bottles, and metal bottles.

semi automatic labeling machine

The semi-automatic flat labeling machine working principle is simple and effective, the operator can complete the labeling process with only simple operations.

First, the operator places the label on the infeed section of the machine;

Then, by setting the appropriate parameters, the machine automatically applies the label to the flat surface of the product;

Here is the semi automatic flat labeling machine youtube video working process in our factory for your reference!!

Semi-Automatic Flat Labeling Machine Advantages

1. Accurate quantitative;
2. High capacity and efficiency;
3. Automatic extraction material;
4. MT-60 Semi-automatic flat labeling machine light and convenient;

MT-60 Semi Automatic Flat Bottle Labeling Machine Parameter

Model: MT-60
Working Method: Semi-Automatic
Working Speed: 20-45 Pcs/min
Bottle diameter: 15-150mm
Maximum label size: W60*L120mm
The inner diameter of the label roll: 75mm
The outer diameter of the label roll: 275mm
Power 145W
Pressure 0.4-0.6Mpa
Labeling Accuracy ±0.5mm
Machine Size 520*350*580mm
Net Weight 48kg
semi automatic flat labeling machine applications

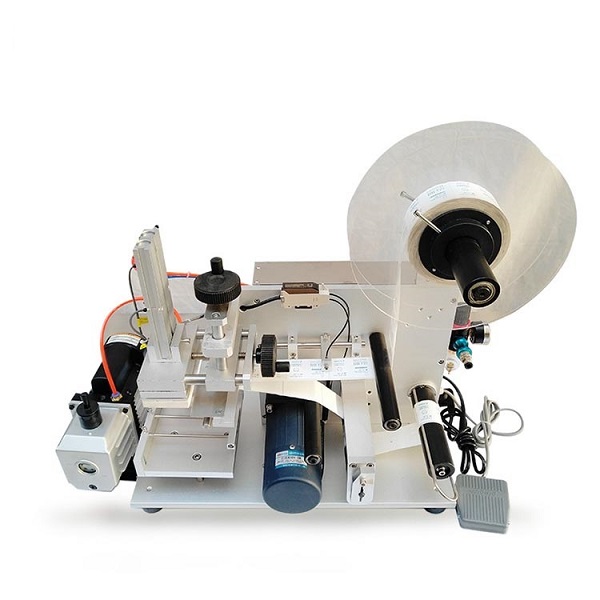

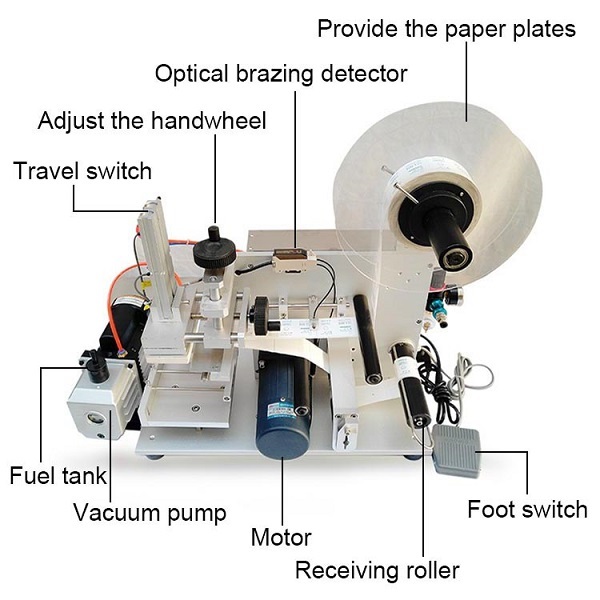

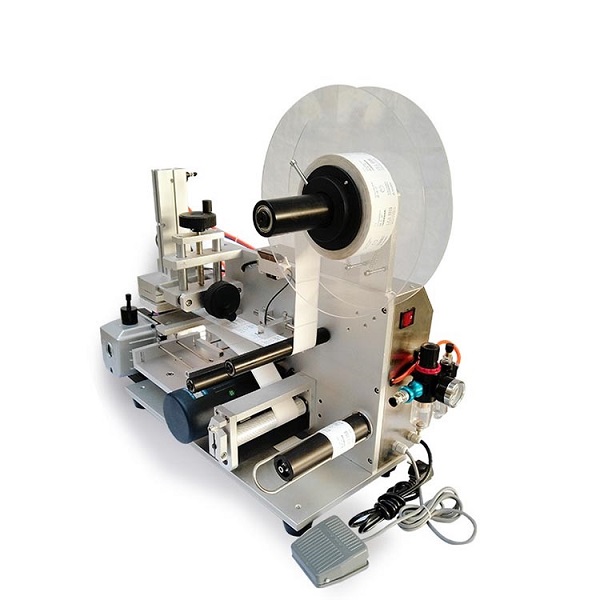

Semi Automatic Label Applicator Machine Details

Optical fiber detectors ensure accuracy and ensure production;

High-power vacuum pump, easy to operate and stable in performance;

The rewinding roller makes the machine easy to operate and greatly improves work efficiency;

Adjustable paper supply tray, the paper supply tray can be adjusted and rotated, and the elastic screws can be adjusted according to actual needs, which is simple and convenient;


Semi-automatic flat labeling machine: Improve your production efficiency! Save time and effort and get your labels applied faster and more accurately. Modern design and easy-to-operate interface enable you to complete the label application task with ease. Whether it’s small batches or large-scale production, our semi-automatic flat labeling machines can meet your needs. Fast, efficient and reliable, all at your fingertips. Contact us today for more information!
