MT-200 Automatic Flat Surface Labeling Machine For Bottles

MT-200 Automatic flat labeling machine is suitable for flat bottle labeling in pharmaceutical, food, daily chemical, and other industries. Simple structure, compact appearance, and powerful function. It adopts card position adjustment, easy-to-switch labeling of different workpieces, advanced electric eye, and high detection sensitivity of objects and labels.


MT-200 Automatic flat labeling machine for bottles synchronous belt traction, the mechanical stability is greatly improved. Suitable for self-adhesive labels, self-adhesive films, electronic supervision codes, barcodes, etc., and suitable for Flat bottle labelings such as plastic bottles, glass bottles, and metal bottles.

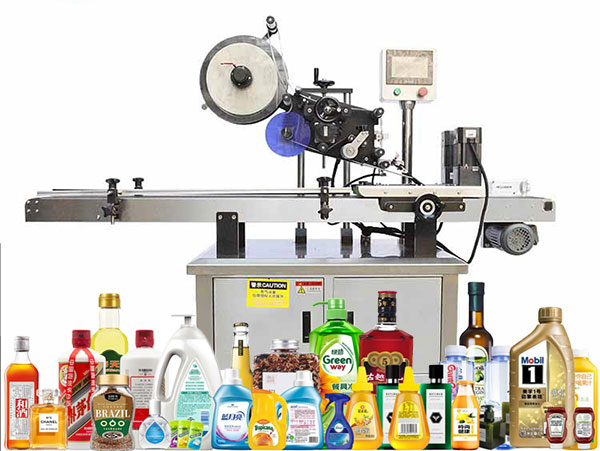

flat labeling machine for bottles

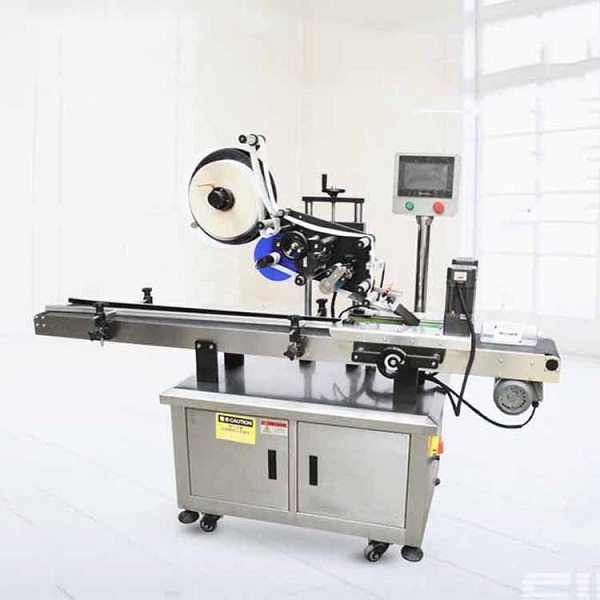

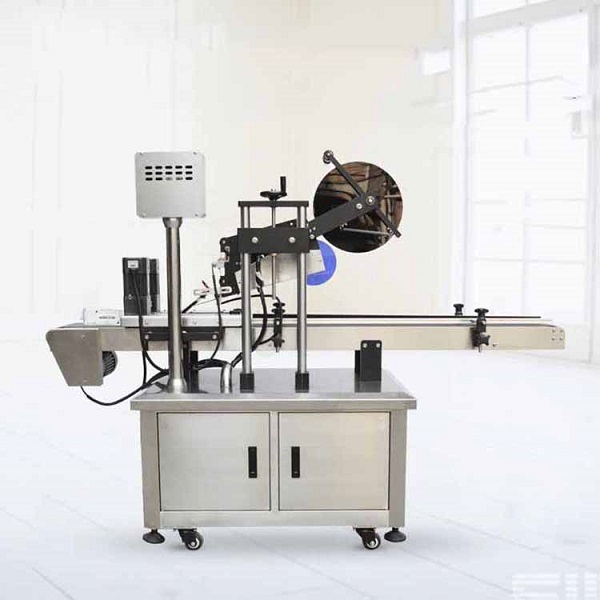

Automatic Flat Labeling Machine Structure

NO.1 High label coincidence;
N0.2 adopts a three-bar adjustment mechanism;
N0.3 intelligent control, automatic photoelectric tracking;

MT-200 Automatic Flat Labeling Machine Parameter

Working Method: Full Automatic
Labeling Speed: 10-40 M/Min
Attached object size: 30-80mm(Can be customized according to needs)
Max label Width: 100mm(Can be customized according to needs)
The inner diameter of the label roll: 76mm
The outer diameter of the label roll: 330mm
Air Source 4-6KG  30L/Min
Voltage 220V/50HZ  2000W
Labeling Accuracy ±0.5mm
Machine Size 2000*800*1500mm
Net Weight 250kg

Automatic Labeling Machine For Bottles Advantages

1. Accurate quantitative;
2. High capacity and efficiency;
3. Easy to operate and convenient;
4. MT-200 Automatic flat labeling machine automatic extraction material;

Flat Labeling Machine Features

1. It has a wide range of applications, which can meet the full-circle labeling or half-circle labeling of round bottles. The labeling switch between bottles is simple and easy to adjust;

2. The labeling quality is excellent, and the elastic pressure-covered belt is used to make the labeling smooth and wrinkle-free, which improves the packaging quality;

3. Flexible application, bottle standing labeling, with automatic bottle separation function, can be stand-alone production, but also can be connected to the assembly line production;

4. High stability, advanced electronic control system composed of PLC+ touch screen + needle-shaped electric eye + measuring label electric eye, supports 7x 24-hour operation of equipment;

5. Intelligent control, automatic photoelectric tracking, with no object no labeling, no label automatic correction and label automatic detection functions, to prevent missing labels and label waste;

6. The adjustment is simple, and the labeling speed, conveying speed, and bottle dividing speed can be adjusted steplessly, and can be adjusted according to the needs;

7. Sturdy and durable, the three-bar adjustment mechanism is adopted to make full use of the stability of the triangle, and the whole machine is solid and durable. Made of stainless steel and high-quality aluminum alloy, it complies with GMP regulations.

8. The label overlap is high, the label tape detour adopts a deviation correction mechanism, the label tape does not deviate, the labeling position is x/y/z in three directions and the inclination is adjustable with eight degrees of freedom, and there is no dead angle in the adjustment, and the label coincidence degree high;
