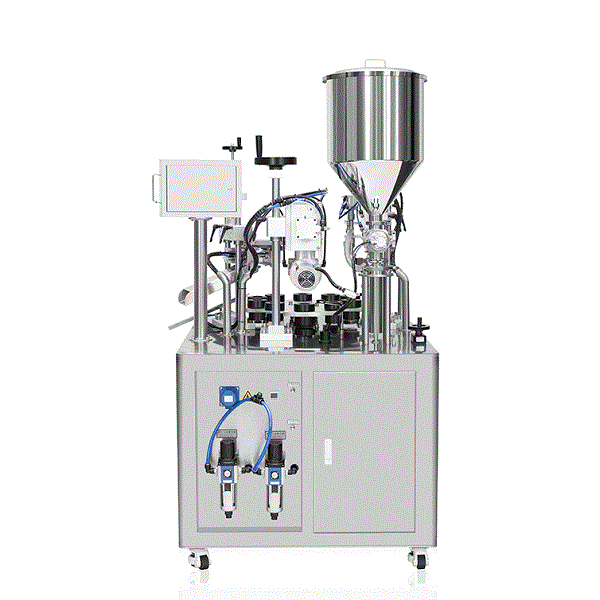

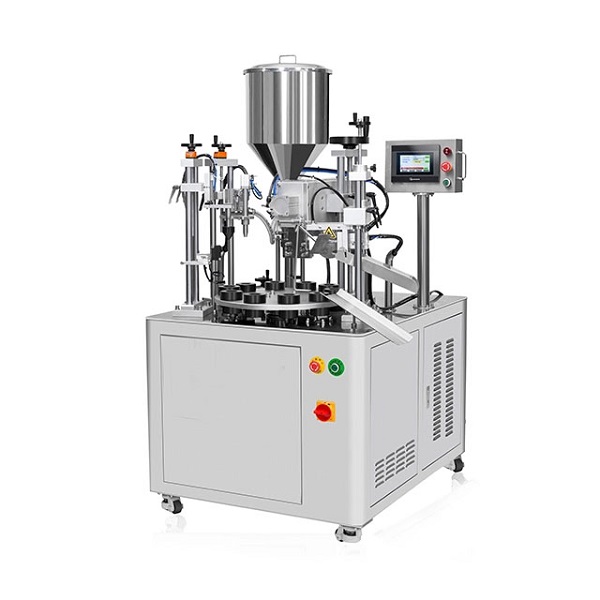

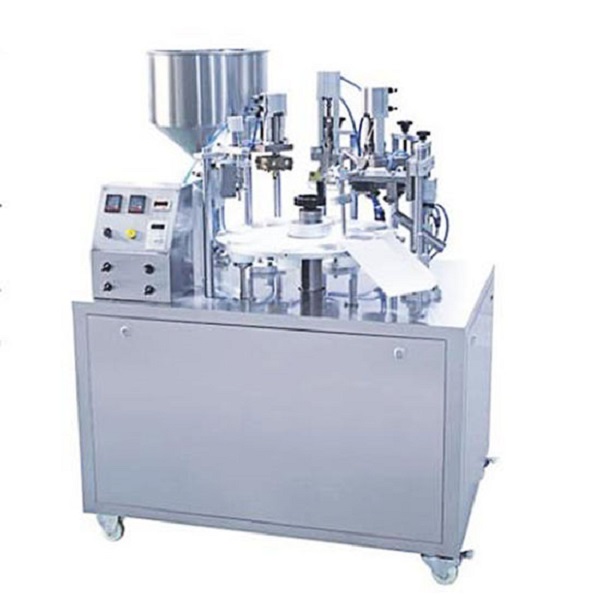

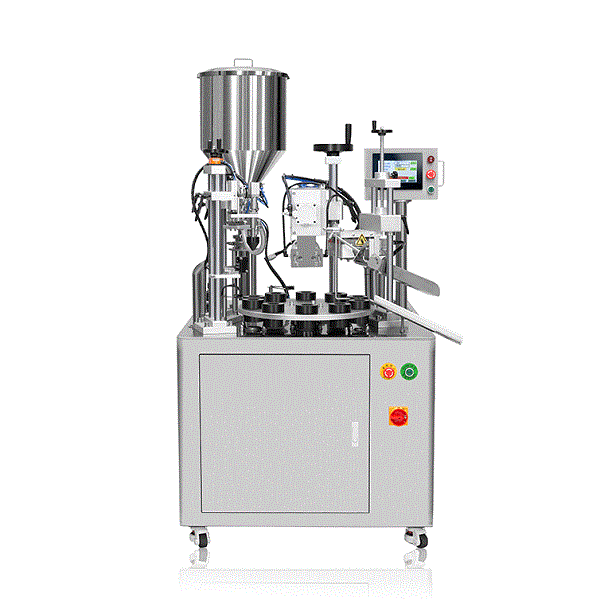

HX-006 Semi Automatic Plastic Hose Tube Filling And Sealing Machine

HX-006 Semi-automatic hose tube filling and sealing machine manually completes a series of actions such as dropping the pipe, automatic alignment, filling, sealing and printing, cutting the tail, and producing finished products.


The semi-automatic hose tube filling and sealing machine can smoothly and accurately inject various pasty, ointment, viscosity fluid and other materials into the hose, and complete the hot air heating, sealing and printing of batch number, production date, etc. in the tube. It is suitable for filling and sealing large-diameter plastic pipes and composite pipes in the pharmaceutical, food, cosmetics, daily chemicals and other industries.

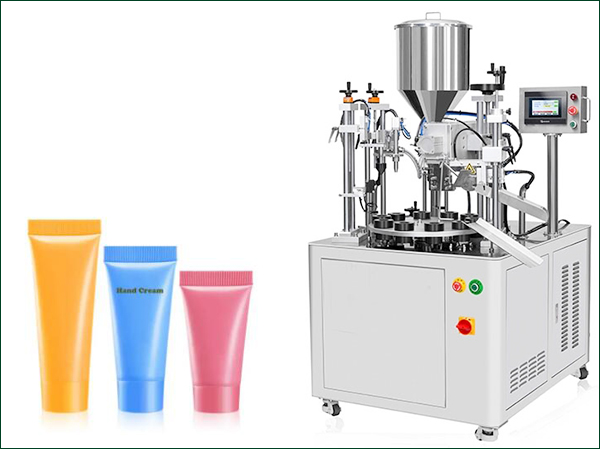

hose tube filling and sealing machine

Tube Filling And Sealing Machine Working Principle

Manual intubation into the turntable mold base, automatic tube pressing (electric eye detects the tube on the mold), automatic marking (if the mark cannot be aligned, subsequent processes will not work), automatic filling, automatic heating (the inner wall of the tube is heated, The outer wall is in contact with stainless steel, and the stainless steel is filled with cooling water), automatic tail clamping (the splint fixed plate is filled with cooling water to ensure that the tail is not drawn), automatic tail trimming (the excess part of the tube tail is cut off), and the finished product is ejected (the cam drives the ejector automatically up and down movement).

Here is the semi automatic hose tube filling and sealing machien youtube video working process in our factory for your reference!!

Tube Filler And Sealer Features

1. PLC touch screen control, simple and convenient operation;

2. The tube filling and sealing machine adopts an all-stainless steel body;

3. The ultrasonic mold is electroplated and oxidized, making it more durable and the sealing appearance is more beautiful;

4. The tube filling and sealing machine adopts American circuit electrical box and original transducer, with stable and reliable performance and long service life;

5. The tube filling and sealing machine is equipped with functions such as automatic marking, filling, tail sealing, edge trimming, and material ejection, which is convenient and fast and has high production efficiency;

Semi-Automatic Filling And Sealing Machine Parameter

Sealing diameter 10-50mm
Material Stainless steel
Sealing speed 22-25 pcs/min
Supply voltage 220V/50HZ 60HZ
Gross weight 380kg
Working Pressure 0.6 Mpa
Sealing height 50-250mm

Semi Automatic Tube Filling And Sealing Machine Advantages

High filling accuracy
High filling accuracy and anti-drawing design;

Automatic management
Automatic tube loading, tail sealing and coding;

tail cutting method
Various tail cutting methods, right angle and arc angle;

Fast production speed
The production speed is as high as 40-55 pieces/minute;

Convenient adjustment
When changing products, the machine can be adjusted in 10 minutes;

Beautiful sealing
The internally heated cold water method can solve problems such as hose burns, tail seal perforations, and unsightly appearance;

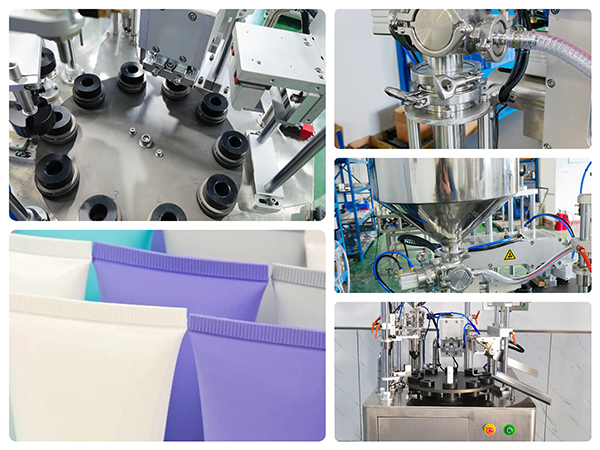

tube filling and sealing machine

The semi-automatic tube filling and sealing machine is an efficient, stable and reliable machine that can be used to fill and seal various tubular products. The use of this tube filler and sealer machine can greatly improve production efficiency and reduce production costs. It is one of the important equipment in modern industrial production.
