HT-M-Series Plastic Film Granulating Machine Granulation Production Line

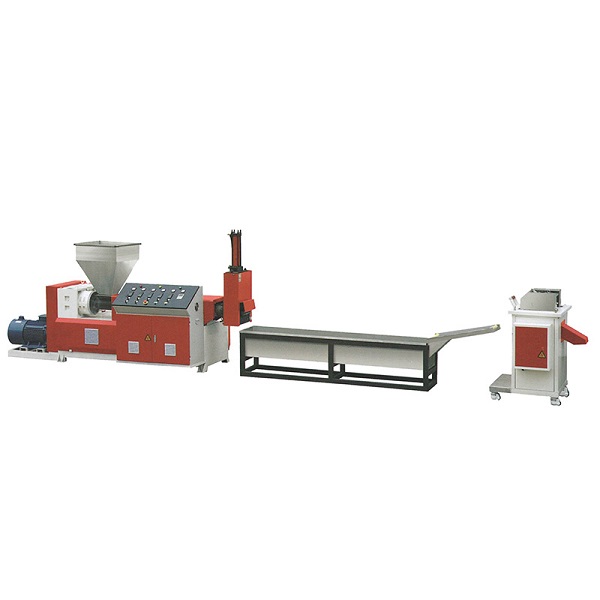

HT-M-90/100/110/120 Plastic granulating machine is used to make plastic granules with a water-cooling plastic recycling machine for clean waste of ABS PE PP PS PC.


The plastic film granulator production line main machine is an extruder, the plastic film granulating production line is composed of an extrusion system, a transmission system and a heating and cooling system. It adopts a special screw design and different configurations, and is suitable for the production of PP, PE, PS, ABS, PVC, PC, POM , EVA, PET various plastic mixed color granulation.

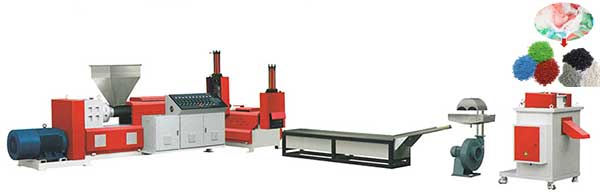

plastic film granulator production line

The plastic film granulation production line working principle is to process the waste plastic film through a series of processing steps, including crushing, cleaning, drying and granulation, and finally obtain uniform plastic granules. These particles can be used again to make new plastic products, such as plastic bags, plastic bottles, etc., to realize the recycling of plastic resources.

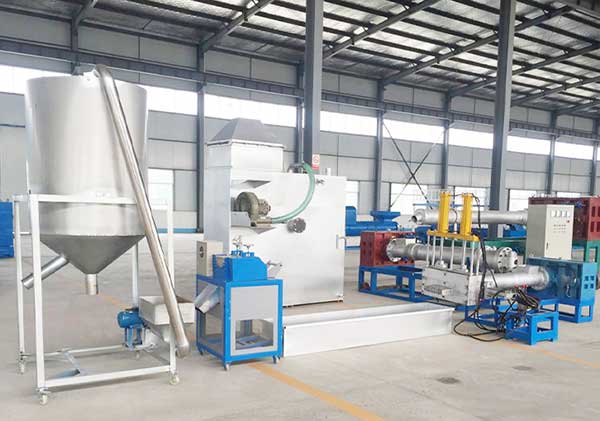

Plastic Film Granulating Production Line

Heating and cooling device
Heating and cooling are necessary conditions for the plastic extrusion process to be carried out;

Extrusion system
The extrusion system includes a screw, a mold, a hopper, and a head, and under the pressure established in this process, the head is continuously extruded by the screw;

Transmission system
The function of the transmission system is to drive the screw and supply the torque and speed required by the screw during the extrusion process, usually composed of a motor, a reducer and a bearing;


Long lasting;
Wet and dry;
Easy to clean;
Efficient motor;
Drainage and exhaust;
Automatic temperature control;

Plastic Film Granulating Production Line

Plastic Film Granulating Machine Parameter

Model SJ-90C SJ-100C SJ-110C SJ-120C SJ-140C
Diameter of   Screw 90/100mm 100/100mm 110/110mm 120/110mm 140/130mm
L:D 20:1/12:1 20:1/12:1 20:1/12:1 20:1/12:1 20:1/12:1
Speed of Screw 10-110rpm 10-110rpm 10-110rpm 10-110rpm 10-110rpm
Gearbox 180/173 180/173 180/173 200/173 225/180
Motor Power 22KW/15KW 22KW/15KW 30KW/15KW 37KW/18.5KW 55KW/22KW
Output 110kg/h 130kg/h 150kg/h 180kg/h 220kg/h
Water Tank Stainless
Filter changer Hydraulic
Cutter Knife Hob (Alloy Steel)
Cutter Motor 2.2kw 2.2kw 3kw 3kw 3kw
Machine Weight 2.4t 2.6t 2.8t 3t 4t
Overall Dimensions 8.8*1.5*1.1m 9*1.3*1.2m 9.2*1.3*1.3m 9.6*1.4*1.3m 9.6*1.5*1.3m

Granulation Production Line Advantages

High speed design, solid and stable optimized design;

Small footprint, low power consumption, high-quality finished products, and wide application range;

The electric control system is convenient to operate, and the electrician carefully checks the electric control system to ensure the quality of the installation;


Plastic film granulation production line is an important plastic recycling and reuse equipment. It can convert waste plastic film into granules and realize the recycling of plastic resources.
