Home » Products » 300 Vertical Nitrogen Sealer Modified Atmosphere Packaging Machine

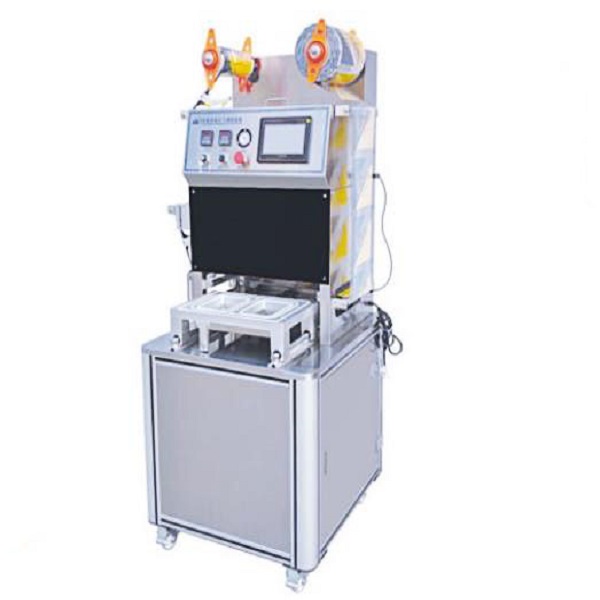

300 Vertical Nitrogen Sealer Modified Atmosphere Packaging Machine

GCSXJ-300 Vertical modified atmosphere sealing machine is a new type of food preservation technology, which uses different protective gases to inhibit the growth and propagation of most microorganisms causing food deterioration to keep food fresh and prolong its shelf life.


The vertical modified atmosphere packaging machine, also known as the controlled atmosphere box packaging machine, uses controlled atmosphere technology to reduce the oxygen content inside the package to a certain level, thereby extending the freshness and shelf life of food and ensuring product quality and safety.

Modified Atmosphere Packaging Machine

This modified atmosphere packaging sealing machine is widely used in prepared dishes, cold fresh meat, braised cooked food, hot pot ingredients, poultry, fish, shellfish, crayfish, fruits, vegetables, and other types of food.

Modified Atmosphere Packaging Machine Advantages

High yield;
Ensure food hygiene;
The high degree of automation;

sealing machine application

Atmosphere Sealing Machine Details

Adjustable pressure and adjustable inflation volume
Can be individually sealed and packaged with adjustable pressure. It can realize vacuum-inflated sealing packaging, and the inflation amount is adjustable;

PLC control system with adjustable vacuum degree
This machine is controlled by a programmable controller PLC, and parameters can be set according to needs. Able to use vacuum packaging alone, with adjustable vacuum degree;

Made of stainless steel
The box-type modified atmosphere packaging machine is made of SUS304 stainless steel, which complies with the national food industry standards, is rust-resistant, and is clean and hygienic;

High vacuum degree and high gas replacement rate
The machine is equipped with a vacuum chamber with a high vacuum degree. It is first evacuated and then filled with gas, so the gas replacement rate is high. Using photoelectric control, optical film and color film can be used on the same machine;

sealing machine details

GCSXJ-300 Vertical Nitrogen Sealer  Parameter

Model GCSXJ-300
Voltage 220v/380v 50-60HZ
Power 2.5 KW
Working Pressure 0.5-0.7 Mpa
Production Capacity 240 -300 pcs/h
Box size 2014/1813/1812/1712/1414
Filling gas Nitrogen, oxygen, carbon dioxide, and other inert gases
Ultimate vacuum degree -0.8~-1MPA
Size 82*82*168 cm
Weight 280kg

Modified Atmosphere Sealing Machine Features

1. A variety of gases can be filled inside the box;

2. Sensor tracking and correcting the sealing position automatically;

3. Equipped with Upper and lower double vacuum chambers with high vacuum degree;

4. Various cups, boxes, and bowls can be customized according to customer requirements;

5. .The material of the equipment is high-quality 304 stainless steel and aluminum alloy, which meets GMP requirements;

6. GCSXJ-300 Vertical modified atmosphere sealing machine adopting PLC to cooperate with man-machine interface control, the operation is simple and clear;

sealing machine in factory

Why The Atmosphere Sealing Machine Become More And More Popular?

First of all, the equipment has efficient, stable, and reliable performance and can meet the packaging needs of different industries;

Secondly, the vertically controlled atmosphere sealing machine adopts advanced gas control technology and sealing technology to ensure the sealing and stability of the packaging;

Thirdly, the equipment is simple to operate and maintain, which can reduce the company’s production costs and labor costs;

Finally, the vertical controlled atmosphere sealing machine also has the advantages of environmental protection, energy saving, safety, etc., and can meet the sustainable development needs of enterprises;

In short, the vertical controlled atmosphere sealing machine is an efficient, stable, and reliable packaging equipment with wide application prospects and development potential. Enterprises should actively introduce and apply this equipment to improve product quality and safety and promote the sustainable development of enterprises.
