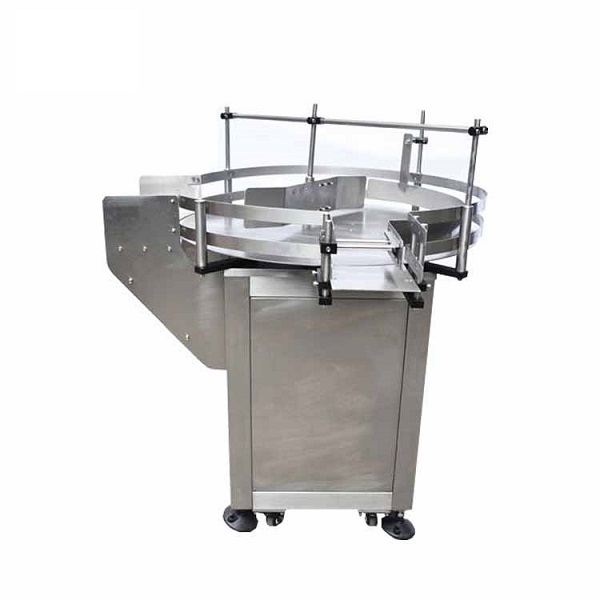

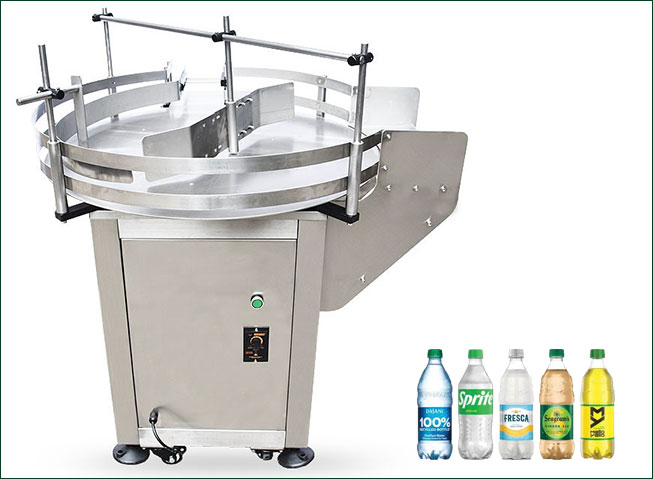

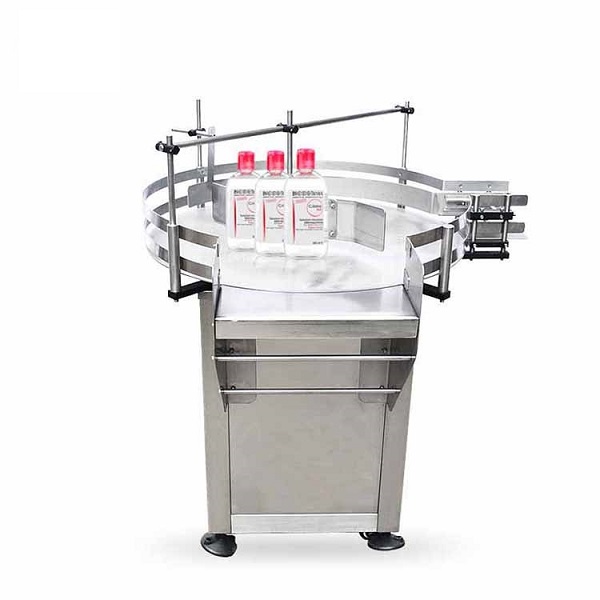

The GC03 Automatic bottle unscrambler drives the product to rotate automatically. The product is close to the edge of the turntable under the fluctuation of the bottle sorting plate. The product is transported to other equipment or countertop in an orderly manner along the bottle sorting groove of the bottle sorting machine.
The automatic bottle unscrambler machine is an automatic equipment, mainly used for bottle supply on the production line. It can automatically supply empty bottles to downstream filling, sealing, labeling, and other processes. The range of applicable bottles can be adjusted freely, and the bottle conveying speed is 30~200 bottles/minute, and the speed can be adjusted steplessly, which is convenient for production arrangement.
The bottle-feeding machine is usually composed of conveying system, bottle distribution system, control system, and other parts.
The empty bottles are transported from one location to another through the conveying system, and the empty bottles are sent to the next process one by one through the bottle distribution system.
The control system can monitor and control the operation of the entire bottle-feeding machine to ensure a smooth and stable production process.
The bottle feeder can greatly improve production efficiency and reduce manpower input. It is one of the essential pieces of equipment for modern production lines.

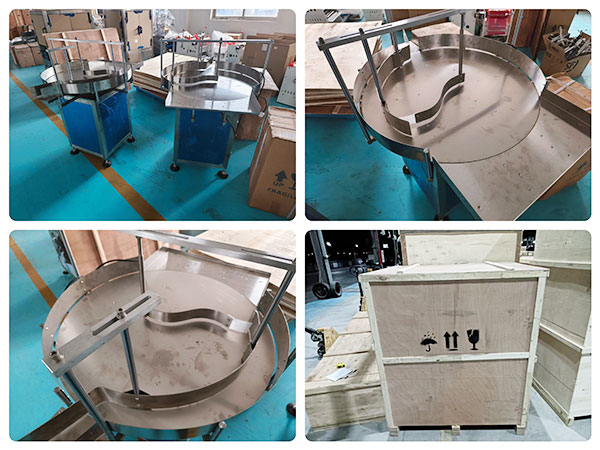

Here is the bottle unscrambler machine working process in our factory for your reference!!
1. The structure is relatively simple, stable, and reliable;
2. Putting, collecting, and sorting products, reducing labor intensity and improving efficiency;
3. GC03 automatic bottle unscrambler is suitable for the automatic transmission of round bottles and square bottles, such as the conveyor belt connected to the labeling machine, filling machine, and capping machine, which can automatically send bottles and improve efficiency; it can be applied to the middle connection of the assembly line As a buffer platform to reduce short conveyor belt lengths;
1. Bottle unscrambler
According to the size of the bottle, select the bottle unscrambler;
2. Motherboard program
The circuit board is upgraded, the action is more precise, and the life is longer;
3. Automatic bottle picker
For bottles of different specifications, avoid overlapping bottles;
4. Emergency stop button
The delivery of bottles can be interrupted at any time to avoid unnecessary actions;
|Turntable diameter||800mm(can be customized)|
|Applicable product range||Diameter：φ20mm～φ100mm|
The range of applicable bottles can be adjusted freely, and the conveying speed of bottles is 30~200 bottles/minute, and the speed can be adjusted steplessly, which is convenient for arrangement.
It is suitable for the automatic conveying of round and square bottles, such as the conveyor belt connected to the labeling machine, filling machine, and capping machine, to automatically send bottles and improve efficiency; conveyor belt length;
This machine can be used immediately when it is powered on and is easy to operate. It can be widely used in glass bottles, plastic bottles, and polyester bottles in the industries of medicine, pesticide, food, and chemical industry. It is an ideal auxiliary equipment for large, medium, and small production workshops.
The turntable of this machine adopts frequency conversion step-less speed regulation for rotary motion, so that the bottles enter the conveyor belt in sequence under the action of the rotating tangential force, and are matched with the packaging production line to achieve the purpose of saving labor and improving production efficiency.
