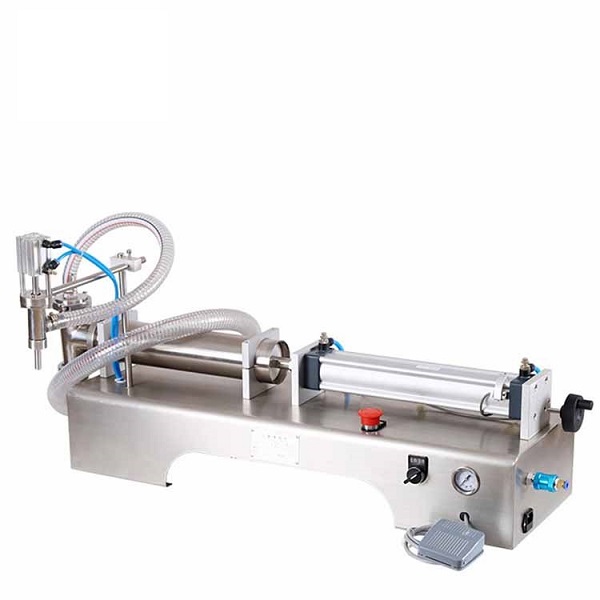

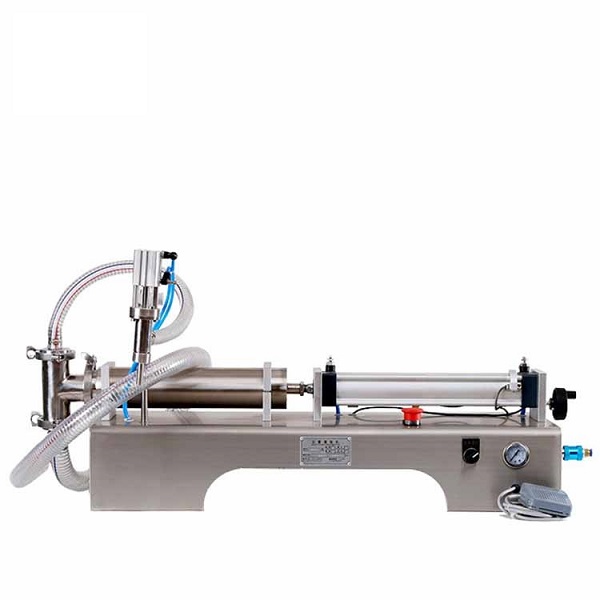

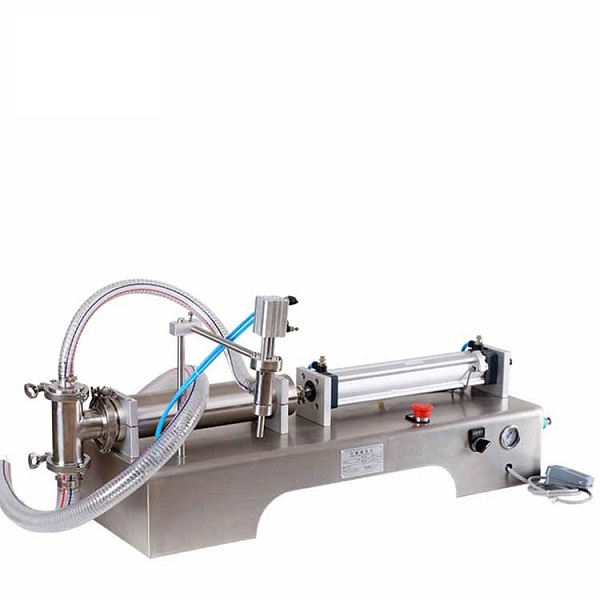

G1WY Horizontal Pneumatic Juice Beverage Liquid Filling Machine

G1WY Liquid filling machine uses compressed air as the power to make the operation more convenient, which is specially designed for hospitals, laboratories, beauty salons, small and medium-sized enterprises, etc. It is very suitable for filling small-meter liquids and pastes.


G1WY horizontal pneumatic liquid filling machine has a reasonable structure, high filling accuracy, easy operation, and accurate and stable quantitative filling. It is suitable for filling liquids, beverages, juices, and other liquids. Users can set the filling capacity according to their needs.

liquid filling machine

G1WY Juice Liquid Filling Machine Advantages

1. The filling accuracy is high, and the filling head adopts anti-drip and lifting filling settings.

2. G1WY Liquid filling machine structure is simple and reasonable, the precision is high, and the operation is simple.

3. The power part adopts a pneumatic structure, and all adopt German FESTO and Taiwan AirTac and SHAKO, and so on other famous brand components.

4. The contact part of the logistics is made of 304L stainless steel material, which meets the requirements of GMP certification. The filling volume and filling speed can be adjusted freely according to the customer’s needs.

filled products

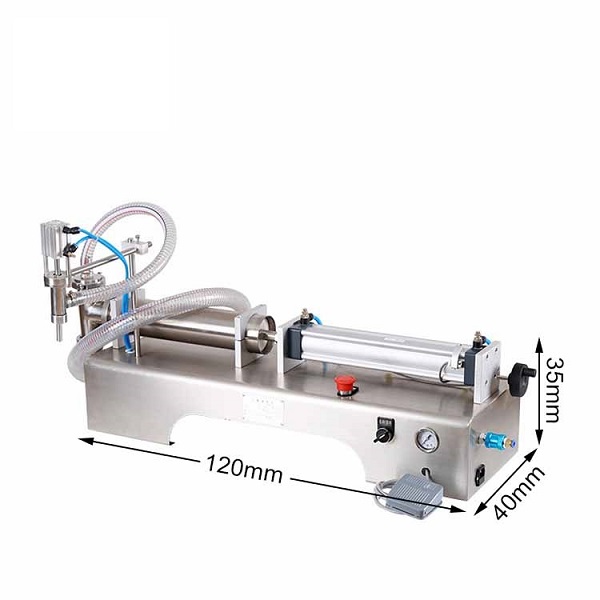

G1WY Beverage Filling Machine Technical Parameters

Model: G1WY
Working Method: Pneumatic, work with air compressor
Filling Category Paste and Liquid
Number of Filling Heads One/Double/Multiple
Working Speed: 15-35 Cans/min
Filling Range: 10-100ml,30-300ml,50-500ml,100-1000ml,250-2500ml,300-3000ml,500-5000ml
Filling Nozzle Diameter: ≥4mm
Filling Accuracy: ≤±1%
Hopper Volume: 30L
Working Pressure: 0.4-0.9MPa
Anti-drip function: Yes
Can be done with Heater Mixer Yes
Power Supply 220V/110V  50HZ/60HZ

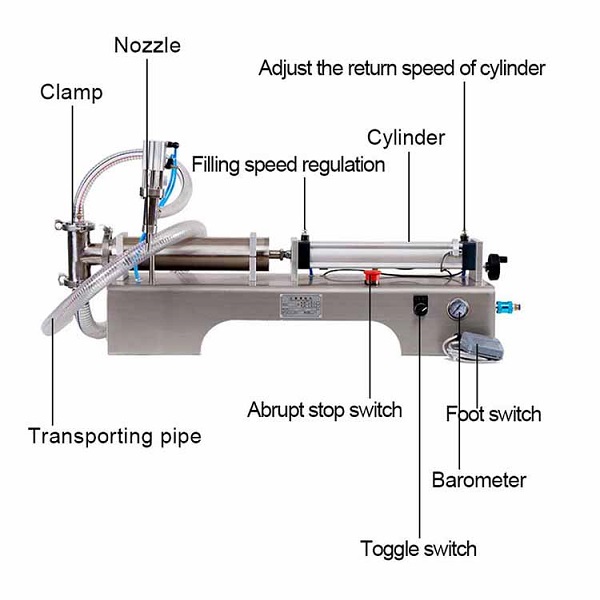

Horizontal Pneumatic Liquid Filling Machine Features

Stainless steel outlet
Made of fine steel, stable and durable, accurate filling and long life, high-precision anti-drip filling system;

juice filling machine

Precision check valve
It is easy to disassemble for filling food or products with various colors and flavors. Easy to clean, saving time and effort;

Precision check valve

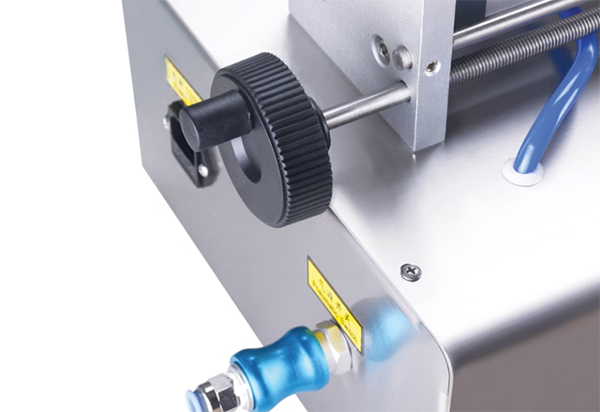

Filling adjustment rocker
The filling volume is manually operated, and the scale can be adjusted freely according to the demand, and the operation is simple;

juice filling machine

High-quality PTFE piston
Using PTFE material, good sealing performance, corrosion resistance, high-temperature resistance, not easy to deform, long service life;

juice filling machine

Genuine high-quality large cylinder
High-quality genuine products, large cylinder genuine accessories, large power, stable air pressure, durable and corrosion-resistant;

liquid filling machine
