Automatic Oil Filling Machine With Flow Meter For Sale

The Full-automatic flow meter filling machine adopts a high-precision flowmeter and real-time temperature collection, which can adjust the filling volume in a large range and is suitable for large-capacity filling.


The automatic flow meter oil filling machine is a filling equipment specially designed for filling oily liquids such as edible oil and various lubricants. It is usually equipped with a high-precision flow meter and real-time temperature collection to compensate for the density changes of the oil due to temperature differences, thereby effectively ensuring filling accuracy. Widely used in automatic filling of peanut oil, rapeseed oil, salad oil, olive oil, blended oil, soybean oil, sesame oil, pepper oil, and other vegetable oils.

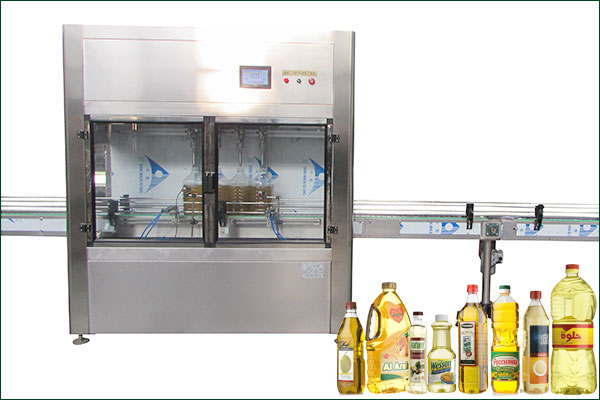

edible oil filling machine

The automatic oil filling machine’s working principle is to use a flow meter to measure the flow of oil, and then control the opening and closing of the filling valve according to the preset filling parameters to achieve automatic filling. The flow meter can accurately measure the flow of oil, ensuring that each container can be filled with an accurate amount. At the same time, the automatic oil filling machine is also equipped with a liquid level control system that can automatically detect the liquid level to ensure that each container can be filled.

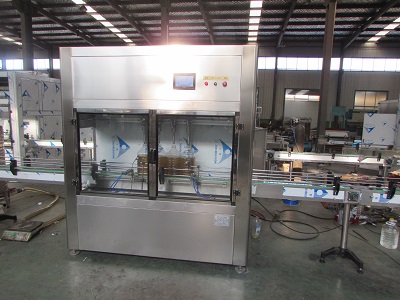

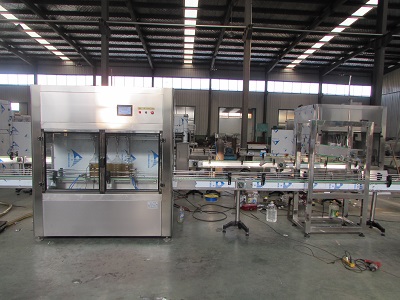

Here is the automatic edible oil filling machine testing in our factory for your reference!!

Automatic Oil Filling Machine Features

1. The Full-automatic flow meter filling machine interface is adopted, with complete functions, convenient, reliable, and simple operation;
2. The filling volume can be adjusted in a large range, and the adjustment division value is 1ml.
3. The filling and unloading forms are oblique punching or direct punching to suit different liquid fillings. The oblique punching type is suitable for liquid materials that are easy to foam. The filling nozzle positioning mode is plug-in or suspended to adapt to different types. Filling high-level products.
4. The liquid supply form can be a high-position tank or pumped liquid, which greatly improves the production capacity.
5. Using frequency conversion speed regulation, the first fast and then the slow pipes are mixed, which effectively solves the phenomenon of steam and foam overflow during pump pressure fast filling, which can ensure the filling accuracy;
6. Unique filling head design and vacuum suction system to ensure that the site and packaged products are not contaminated by residual liquid.
7. The electrical and gas main components are equipped with well-known quality components to ensure the reliability, accuracy, stability, and durability of the system operation.

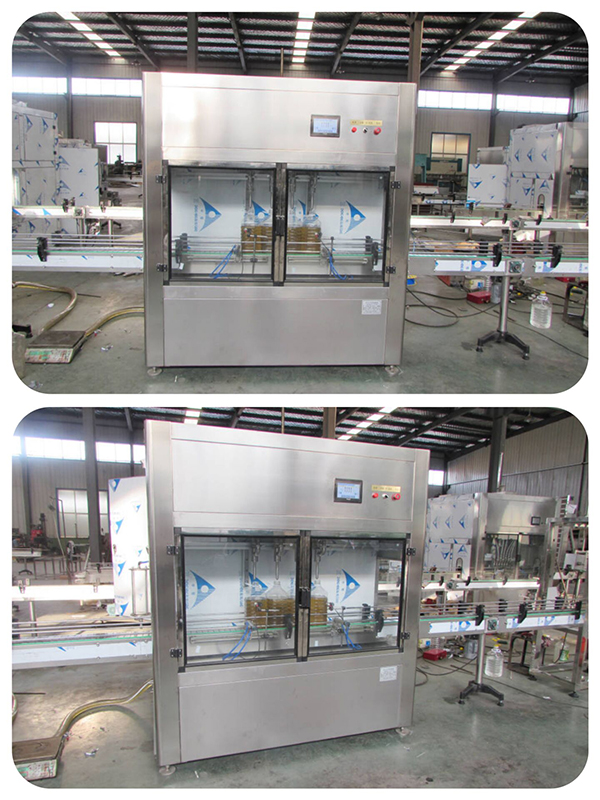

flowmeter filling machine details

Fully-Automatic Flow Meter Filling Machine Parameter

Item# YZH-FM20
Available Bottle Height Customized
Available Bottle Diameter Customized
Filling Speed 10~20pcs/min(If filling range 1 liter)
Power (KW) 0.75~1.5kw(380V/50Hz)
Filling Range 1~20 Liters
Filling Accuracy ≤±0.2%
Dimension(mm) 1900*1600*2000
Net Weight(kg) 800kgs

Automatic Oil Filling Machine Features

1. Double flow rate filling first fast and then slow;

2. High-precision liquid pump, quantitative and reliable;

3. Mechanical seal and automatic suction back to double anti-drip;

4. PLC program control, frequency converter speed regulation for linear filling;

5. Adopt a high-strength stainless steel frame, easy to disassemble and assemble, and easy to clean;

6. This filling machine is a fully automatic quantitative liquid filling machine, suitable for filling various oils, such as lubricating oil and edible oil;

7. This model is equipped with a touch screen and can be connected to a variable frequency speed conveyor belt, an automatic induction capping machine, and a vacuum anti-drip device;

8. The human-machine interface can directly set the filling volume. The filling volume and filling speed are easy to adjust. They are operated and displayed by the touch screen and have a beautiful appearance;

edible oil filling machine details

In short, the automatic oil filling machine is an efficient and accurate filling equipment, which can improve production efficiency, reduce waste and improve product quality. It has broad application prospects in lubricants, edible oils, chemical raw materials and other fields, and will bring more convenience and benefits to related industries.
