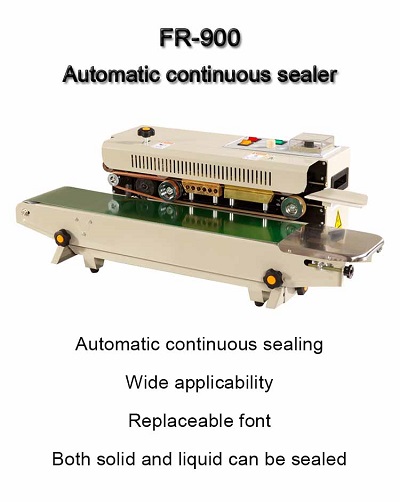

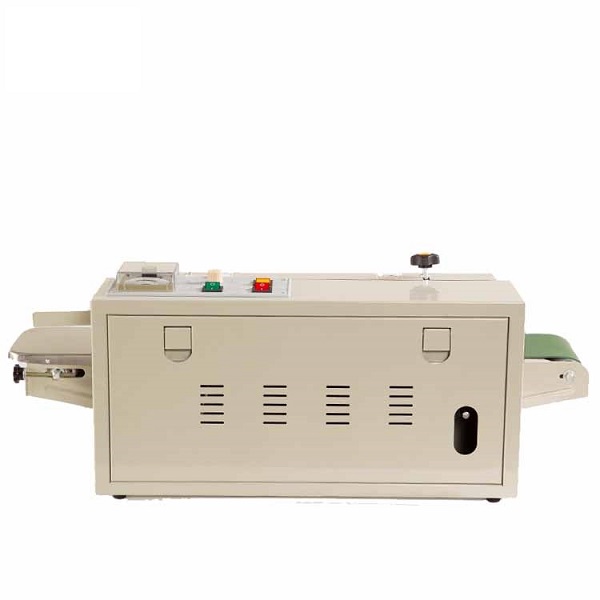

FR-900 Automatic Plastic Bag Sealing Machine Horizontal Type

FR-900 Plastic film bags heat sealing machine of automatic plastic film sealing machines adopt electronic constant temperature control and automatic conveying device, can control different shapes of plastic film bags, can be used in all kinds of packaging lines, and the seal length is not limited.


The FR900 Automatic Plastic Bag Sealing Machine has a novel structure, simple operation, and complete functions. It can complete pushing and sealing in one go with a high degree of automation. It can greatly reduce the labor intensity of the operator. It has the advantages of safety, reliability, easy operation, fast heat sealing, and beautiful and firm sealing. FR-900 plastic film bag heat sealing machine can seal various bags, such as kraft paper, fresh-keeping bags, tea bags, aluminum foil bags, shrink film, food packaging bags, etc. Widely used in food, pharmaceutical, aquatic products, chemical industry, electronics, and other industries.

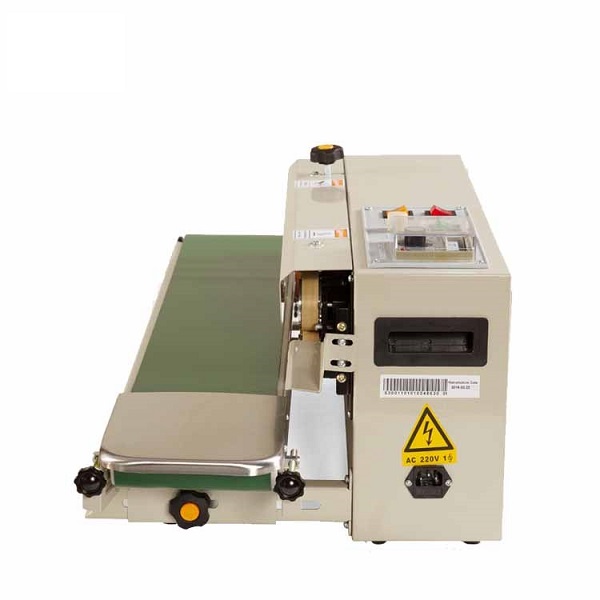

FR 900 automatic plastic bag heat sealing machine

Note: This FR-900 plastic film bag heat-sealing machine comes standard with an embossing wheel. If you need smooth wheels and striped wheels, you need to purchase them separately. The font type can be changed as needed, and the factory date, shelf life, shelf life, and other signs can be printed on the seal at the same time. The sealing pattern and signs are clear and beautiful.

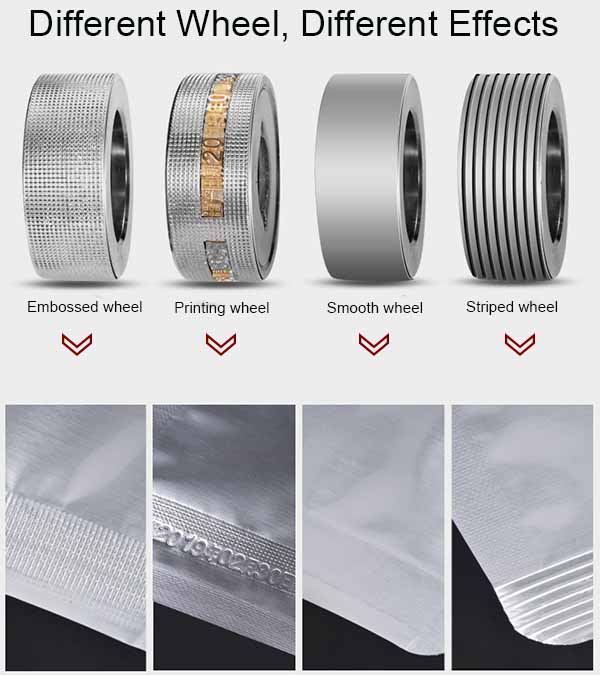

different wheel different effects

The Operation Method For Printing Wheel To Change The Date

A: Use an across screwdriver to unscrew the screw head
B: Unscrew the top screw, the screw does not need to take off, you can unscrew
C: Lift the wheel by hand, slowly remove the wheel
D: Remove the embossing wheel
E: Wheel and wrench
F: With the wheel, wrench unscrew the lid
G: Unscrew the lid, take out the words, and Change the words you need.

Here is the small nuts plastic bag sealing machine working feedback from our customer’s factory for your reference!!

FR-900 Continuous Plastic Film Bags Heat Sealing Machine Parameter

Model FR-900
Voltage 110V/220V, 50/60HZ
Sealing Power 850W
Motor Power 50W
Sealing speed 0-12m/min
Sealing width 6-15mm
Control tempt 0-300℃(adjustable)
Printing type Steel letter
Film thickness ≤0.08mm
loading ≤5KG

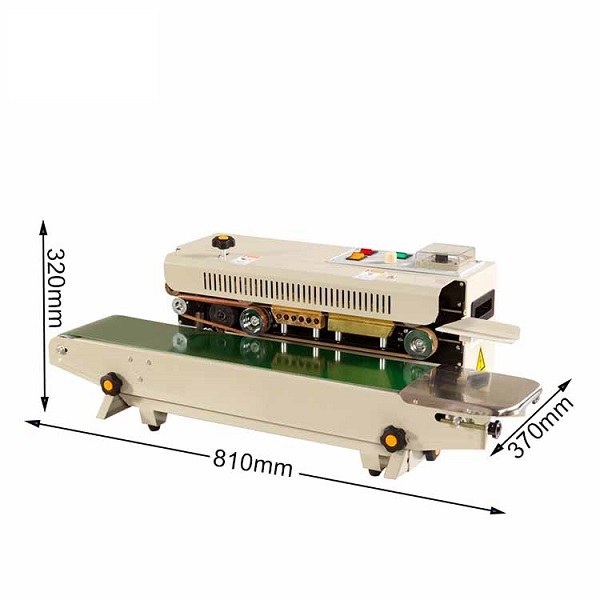

Dimension(L*W*H) 840*380*320mm
Net Weight 19kg
sealed effects

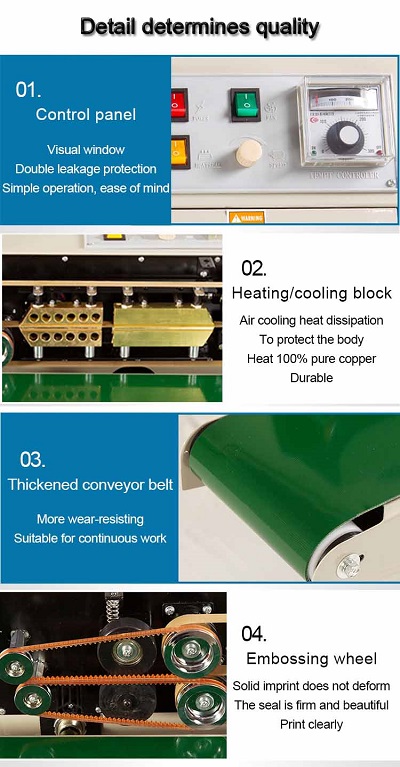

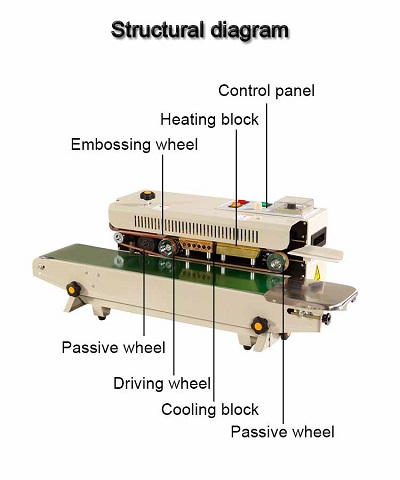

Automatic Plastic Bag Sealing Machine Details

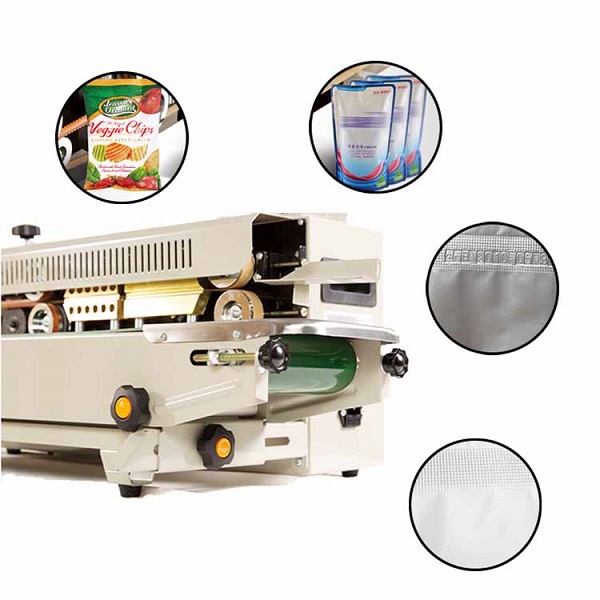

Wide application range, suitable for both solid and liquid
It has a wide range of applications. It can not only seal solids but also seal liquid packages. One sealing machine has multiple uses, providing you with a new and convenient sealing method;

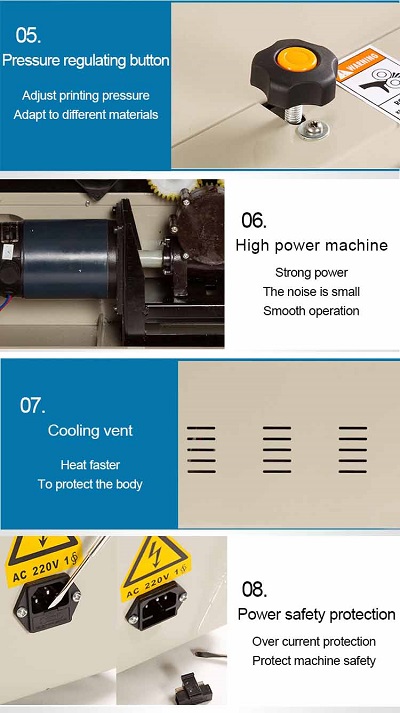

Large motor iron gear aluminum turbine box
The large motor is powerful and the iron gears are of guaranteed quality and durable. The aluminum turbine box has a long service life, the cooling fan is powerful and dissipates heat faster;

The metal embossed wheel seals firmly and beautifully
The embossing wheel made of metal steel is firmer than the ordinary embossing wheels on the market. We have the advantages of clearer embossing lines, flatter indentations, and longer service life;

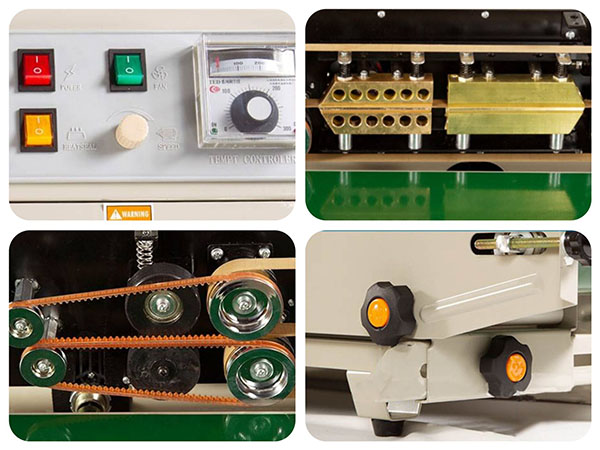

automatic plastic bag heat sealing machine details

Reasonable transmission structure and long service life
The driving wheels, passive wheels, and guide wheels we use are of good quality, thick in structure, durable, and reasonable in transmission structure, which not only conveys efficiently but also has a longer service life;

Patented design for easy replacement of sealing tape
To facilitate the replacement of the sealing tape, we have further upgraded the sealing machine, invented a new design, and applied for a patent, which has technical advantages. Makes it easier and more efficient for you to replace the sealing tape;

Stainless steel copper rod holder
The fixed bracket of the heating and cooling block of the new generation sealing machine adopts stronger stainless steel to prevent the heating block and cooling block from being easily displaced, thereby achieving the purpose of stronger sealing stability. Compared with the iron bracket on the market, it is rust-free and stronger. Durable advantages;


In short, the automatic plastic bag sealing machine is a powerful, easy-to-operate, and widely used sealing equipment. It plays an important role in improving production efficiency and ensuring product quality and hygiene. With the continuous advancement of industrial technology, automatic plastic bag-sealing machines will be used in more industries and bring more benefits to production companies.
