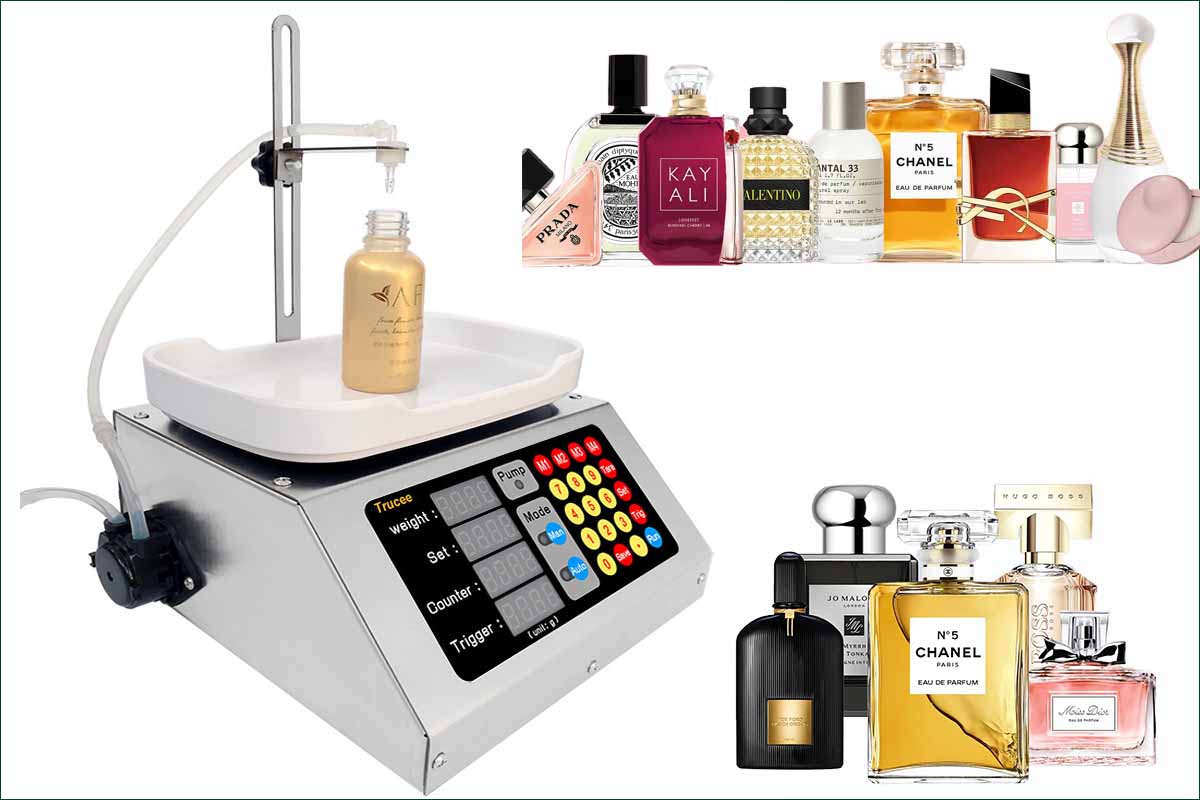

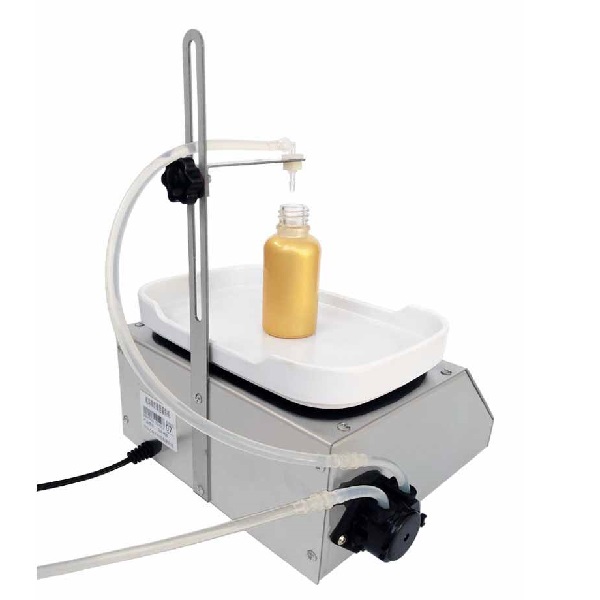

The CSY-M90 Peristaltic pump small quantitative liquid filling machine adopts a peristaltic pump, which makes the filling material pollution-free and more convenient to operate. Using the visual panel, quantitative filling, suitable for filling cosmetics, emulsion, liquid, oil, etc. small capacity precision filling.

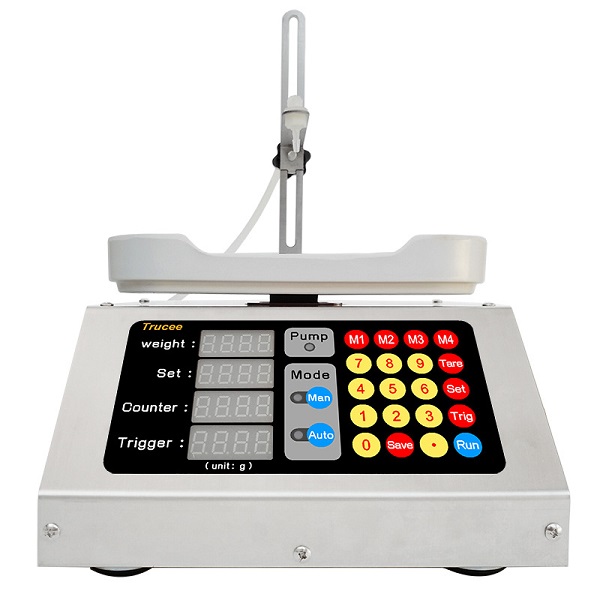

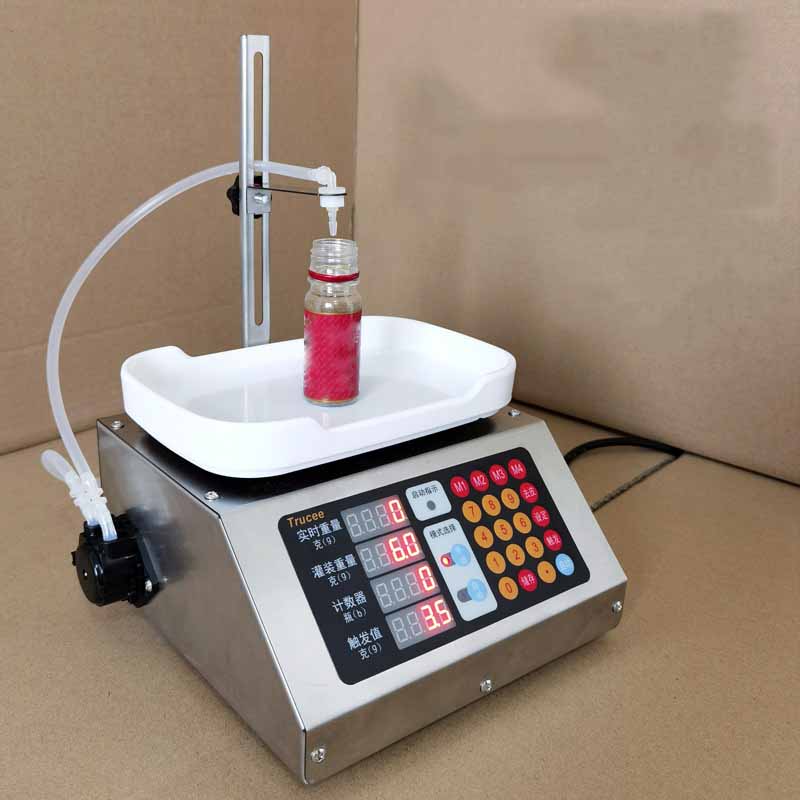

CSY-M90 Peristaltic pump small quantitative liquid filling machine panel display: Weighing weight, setting amount, counter, trigger value, and flow rate value, using LED digital tube display.
1. Basic functions: Real-time weighing, overload alarm, automatic counting, automatic start, automatic speed reduction, automatic stop, data storage, flow rate adjustment, weight calibration, quantitative filling according to time, factory reset, and other functions.
2. CSY-M90 Peristaltic pump small quantitative liquid filling machine each model has an English version, with foreign plugs and English manuals.

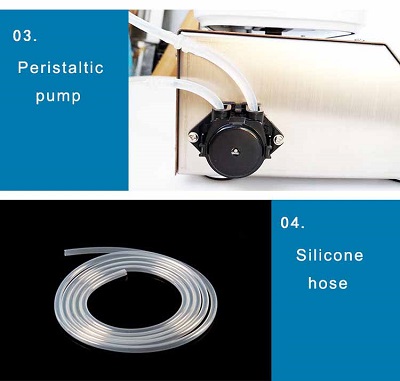

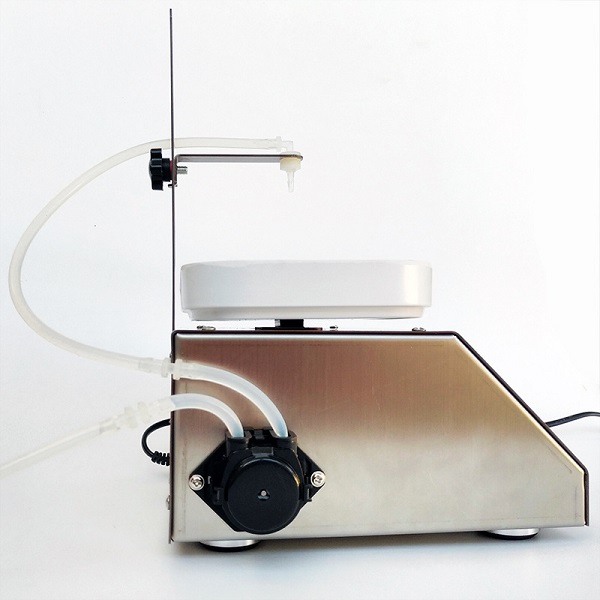

3. Peristaltic pump: Pump water by squeezing the water pipe, that is, the roller squeezes the hose from the outside of the hose to squeeze the liquid out, and the liquid only passes through the water pipe. Clean and pollution-free, easy to change tubes, easy to clean.
|Maximum weighing||500 g|
|Division value||0.1 g|
|Pump type||Peristaltic pump|
|Maximum flow rate||90ml/min|
|Water pipe material||silicone tube|
|Water pipe specification||3*5 mm|
|Water pipe length||1+0.33m|

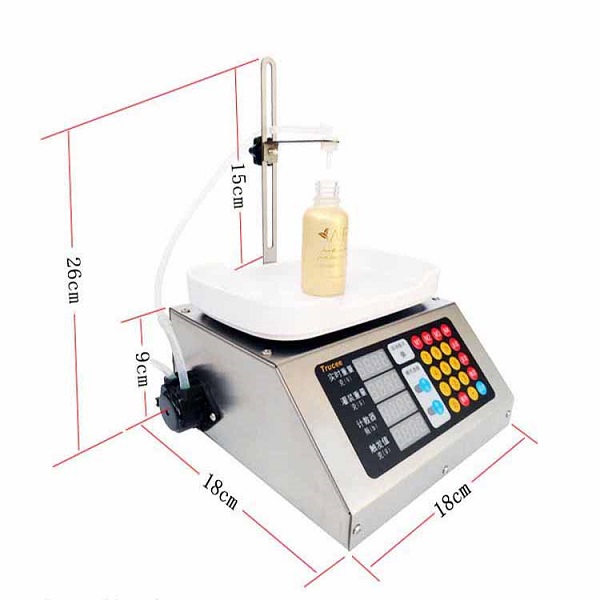

|Host size||18*18*12 cm|
If you need our products please write down any questions, we will reply as soon as possible.
