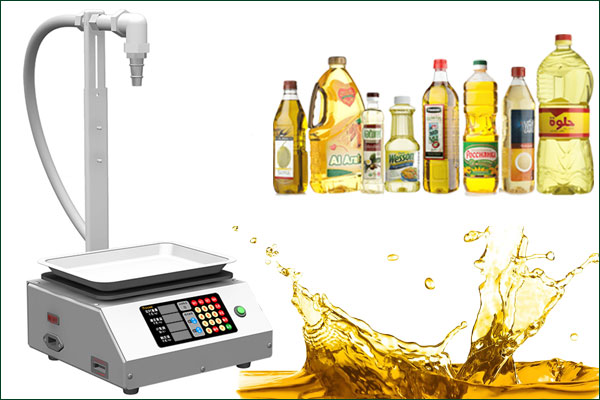

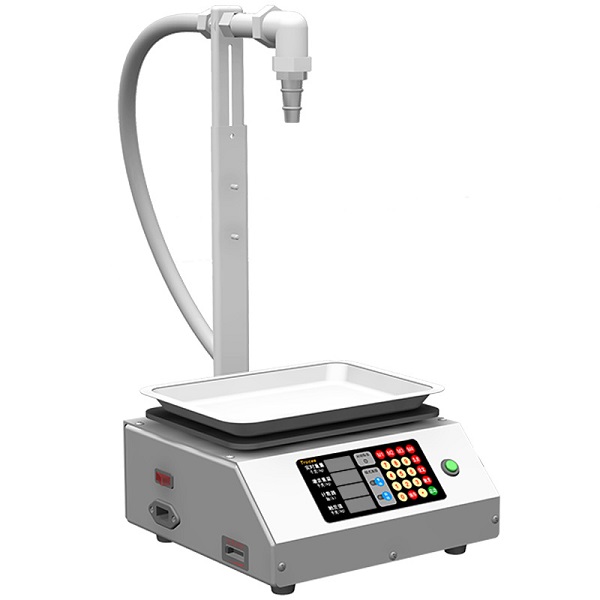

CSY-L17 oil filling machine with diaphragm pump is a frequency conversion quantitative semi-automatic filling machine specially made for viscous liquids, with a flow rate of 16L per minute. It has the features of a beautiful appearance, high filling accuracy, easy operation, and anti-drip.

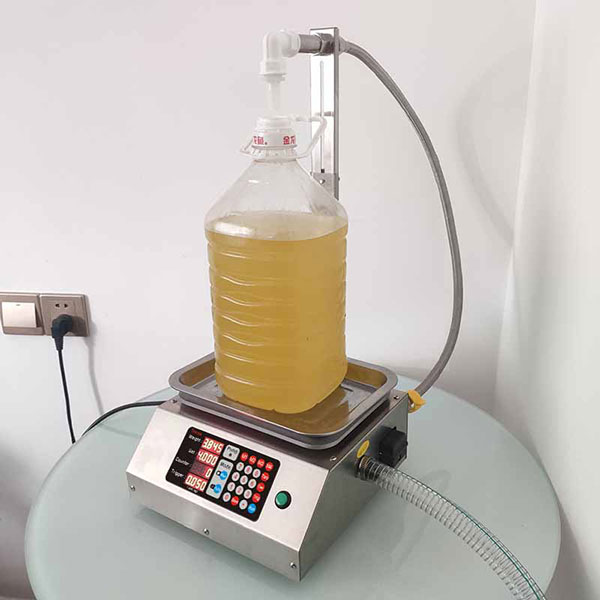

CSY-L17 oil filling machine with diaphragm pump is a frequency conversion quantitative semi-automatic filling machine specially made for viscous liquids, with a flow rate of 16L per minute. It has the features of a beautiful appearance, high filling accuracy, easy operation, and anti-drip. (The flow rate can be adjusted according to the size of the oil pot), suitable for filling various oils, such as lubricating oil, edible oil, rapeseed oil, peanut oil, soybean oil, pepper oil, corn oil, blended oil, castor oil, flax oil, cottonseed Quantitative automatic filling of oil, tea seed oil, and other oils.
1. CSY-L17 Diaphragm pump filling machine Each model has an English version, with foreign plugs and English manuals.
2. Panel display: Weighing weight, setting amount, counter, trigger value, and flow rate value, using LED digital tube display.
3. Peristaltic pump: pumps water by the suction of the diaphragm in the pump chamber, similar to the principle of syringe pumping, the liquid will pass through the inside of the pump chamber.
4. Basic functions: Real-time weighing, overload alarm, automatic counting, automatic start, automatic speed reduction, automatic stop, data storage, flow rate adjustment, weight calibration, quantitative filling according to time, factory reset, and other functions.
The filling speed can be adjusted
Turn the big pot fast, and the small pot slow;

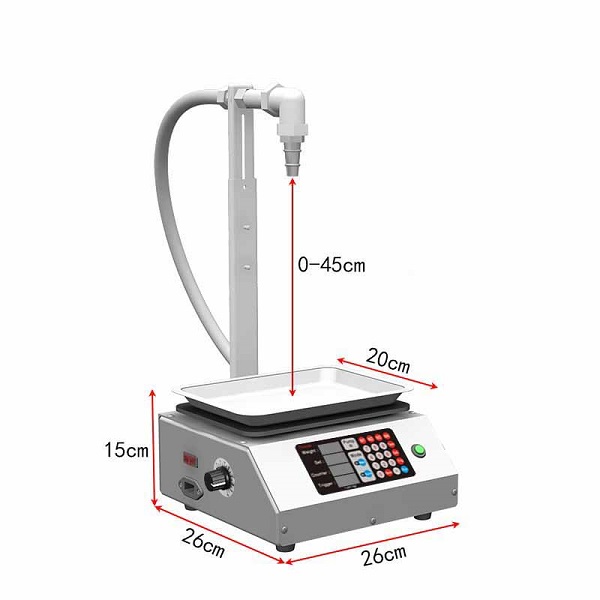

The filling height can be lifted
The filling height can be adjusted, and the lifting range is 0-450mm;
Weight control filling is more accurate
Frequency conversion quantitative filling machine automatically stops when the weight is set, the filling is accurate, no dripping, easy to operate;
|Recommended filling||0.03-10 kg|
|Maximum weighing||15 kg|
|Division value||5 g|
|Maximum flow rate||17 L/min|
|Filling error||≤2-5 g|
|Water pipe material||PVC steel wire pipe|
|Water pipe specification||19*25 mm|
|Water pipe length||2+0.8 m|
|Host size||26*26*15 cm|
|Package weight||8.8 kg|
|Rated power||200 W|
01 Set the weight
If filling 500 grams of liquid, just press the set button, input 500, and then press the set button to complete;
02 Enter automatic mode
Press the automatic key to enter the automatic operation mode;

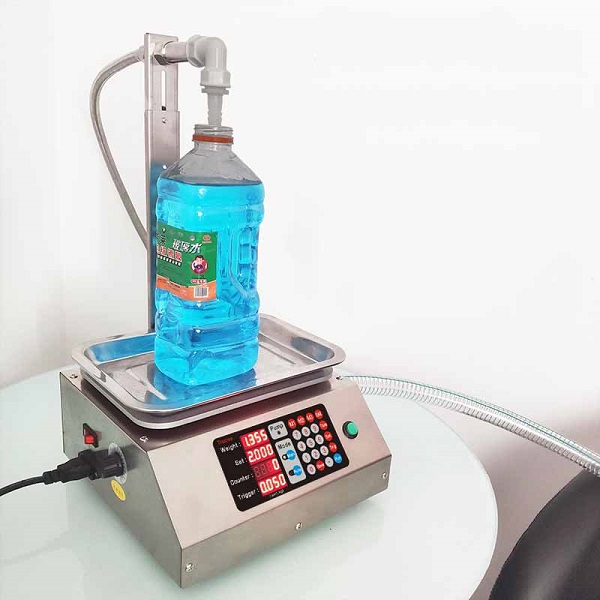

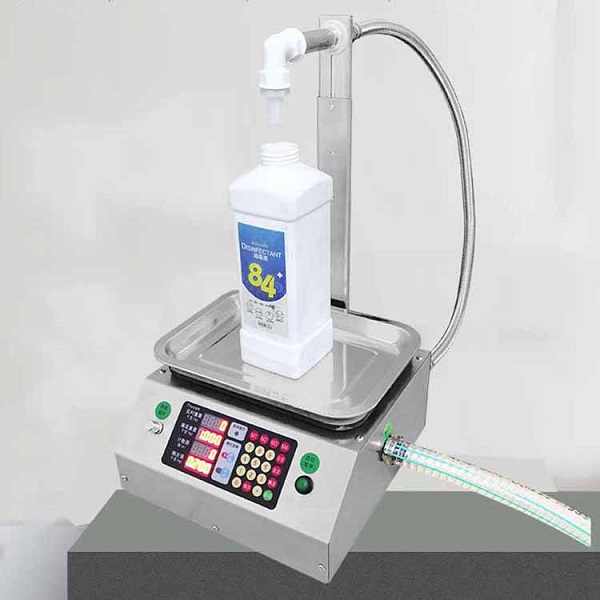

03 Put the bottle
The machine will automatically peel, start filling automatically, reach the set weight, and stop automatically;
If you need our products please write down any questions, we will reply as soon as possible.
