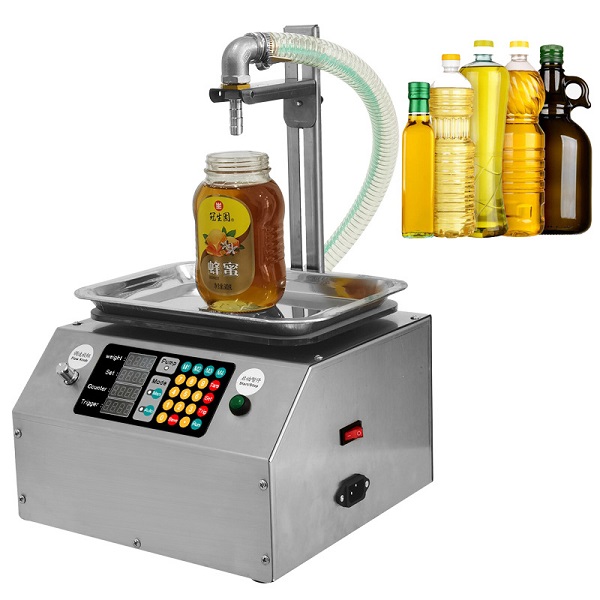

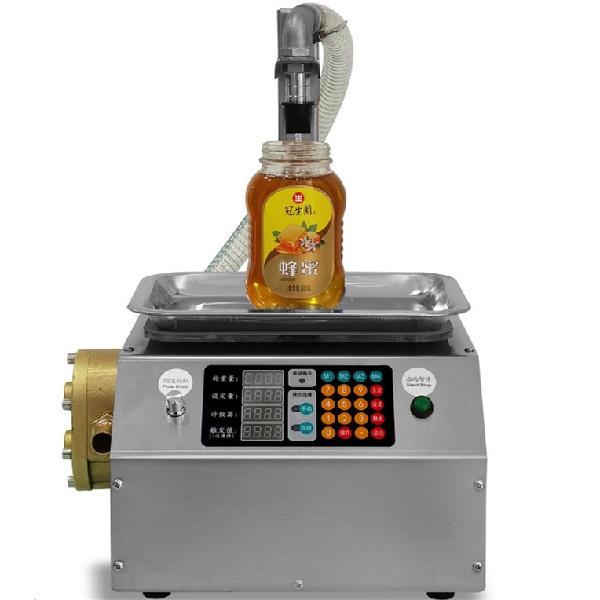

The CSY-L15 small honey-filling machine is compact in design and small in size and is suitable for small-scale bee farm production and filling of honey. This honey-filling machine can effectively automate the honey-filling process, increasing production efficiency and reducing the need for manual operations.
Whatsapp:
+86 17838313979E-mail:
[email protected]The CSY-L15 small honey-filling machine is compact in design and small in size and is suitable for small-scale bee farm production and filling of honey. This honey-filling machine can effectively automate the honey-filling process, increasing production efficiency and reducing the need for manual operations.
1. Each model has an English version, with foreign plugs and English manuals;
2. Copper pump: high-temperature resistance, wear resistance, strong self-priming ability, can pump oil, long life without aging, and high sanitary level;
3. Basic functions: Real-time weighing, overload alarm, automatic counting, automatic start, automatic speed reduction, automatic stop, data storage, flow rate adjustment, weight calibration, quantitative filling according to time, factory reset, and other functions;
Model | CSY-L15 |
Recommended filling | 0.02-10 kg |
Maximum weighing | 10 kg |
Division value | 2 g |
Pump type | Copper |
Maximum flow rate | 15 L/min |
Filling error | ≤2-5 g |
Stand height | 0~40cm |
Water pipe material | PVC steel wire pipe |
Water pipe specification | 19*25 mm |
Water pipe length | 1.5+0.5 m |
Host size | 26*27*20 cm |
Packing size | 35*35*35cm |
Package weight | 12.5 kg |
Rated power | 200 W |

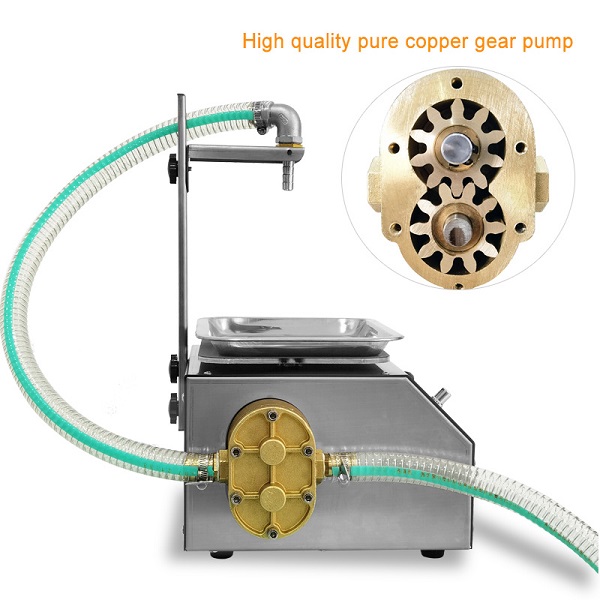

Pure copper gear

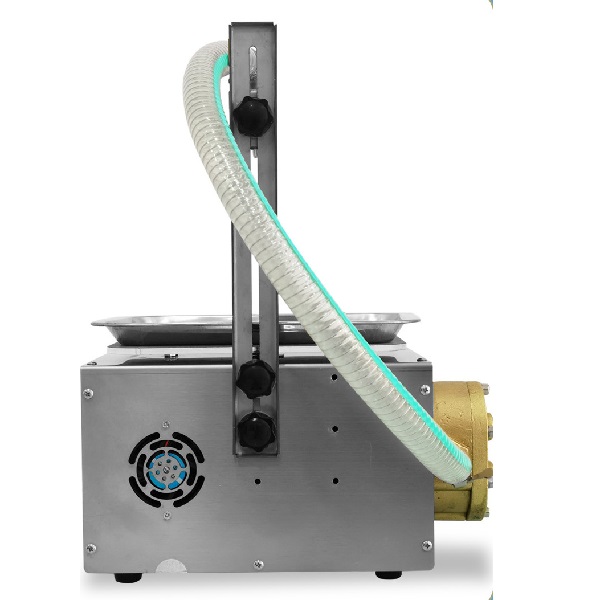

Sliding Hose Brackets
Anti-drip outlet, (0-40cm adjustable);

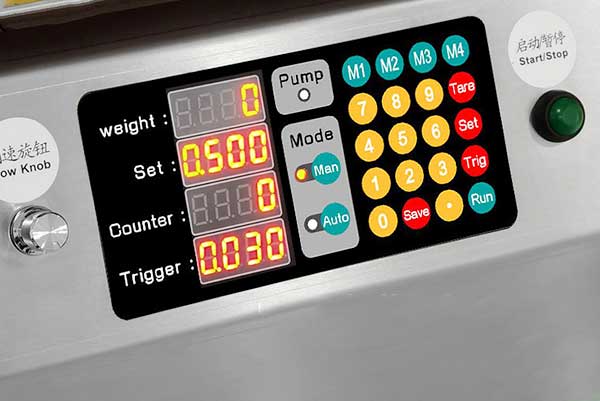

Panel display
The panel is clear, clear at a glance, and easy to operate;
Wire hose
Water inlet pipe: 6-point steel wire hose 1.5 meters long;
Stainless steel body
The casing, bracket, and tray are all made of stainless steel;

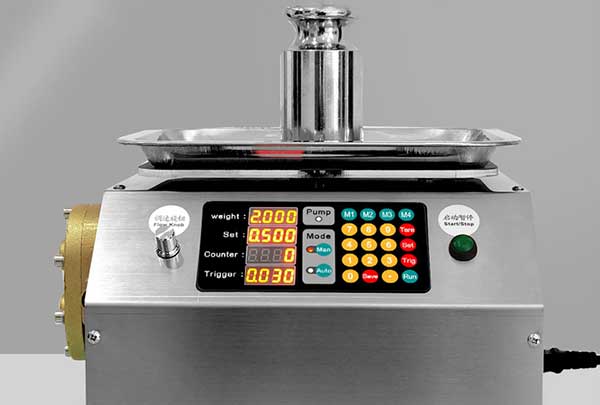

Weighing
Using electronic scales with high precision and responsiveness as the measurement standard, its performance can surpass all time-quantitative methods;
01 Set weight
If filling 500 grams of liquid, just press the set button, input 500, and then press the set button to complete;
02 Enter automatic mode
Press the automatic key to enter the automatic operation mode;
03 Put the bottle
The machine will automatically peel, start filling automatically, reach the set weight, and stop automatically;
Here is the honey-filling machine YouTube video operate process for your reference!!
In general, the small-scale honey-filling machine is an efficient, convenient, flexible, and hygienic standard equipment. Its appearance provides a simple and reliable solution for honey production and filling, making the production process more convenient and efficient. As people’s demand for honey increases, small honey-filling machines will play an increasingly important role in the honey industry.
