B1 Semi-Automatic Paint Bucket Drum Press Capping Machine For Sale

CDYG-B1 Semi-automatic drum press capping machine is widely used for gland sealing of medium barrels, mainly for lubricating oil barrels, antifreeze, hydraulic oil, paint, fertilizer, fertilizer, washing powder, chemical industry, etc. The operation is simple and easy to use.


The semi-automatic paint bucket capping machine can completes the capping of counterweight buckets. The capping machine caps once to ensure a tight cap and a smooth lid after capping. The capping machine is mainly suitable for capping and sealing 15-20 liter medium barrels such as lubricating oil barrels, antifreeze, hydraulic oil, coatings, fertilizers, fertilizers, washing powder, chemicals, etc. Simple operation and easy to use. It can be used for filling in the production line or used alone.

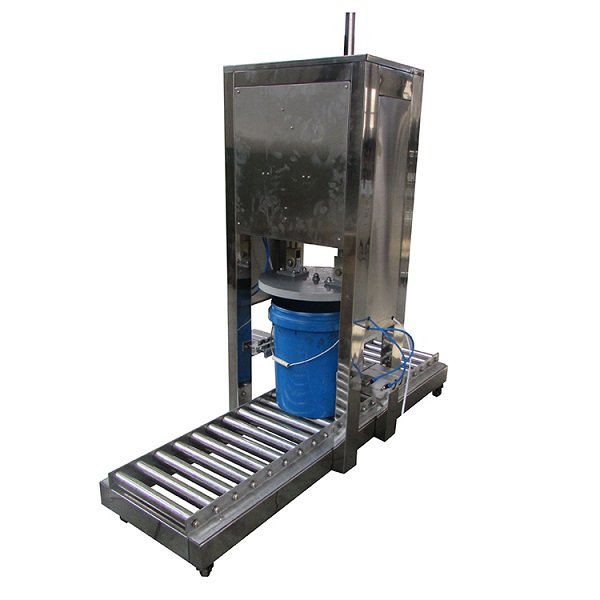

semi automatic capping machine

The semi automatic drum press capping machine adopts a semi-automatic operation mode. The staff only needs to place the paint bucket on the bracket above the machine, and then press the start button, and the machine will automatically complete the drum capping process. During this process, the machine will accurately position the lid over the barrel mouth and apply appropriate pressure to ensure that the lid is completely sealed. The whole process only takes a few seconds, greatly improving production efficiency.

Semi-Automatic Drum Press Capping Machine Advantages

1. High pressure resistant air pipe;
2. Stainless steel roller, beautiful and durable;
3. The frame is made of 201 stainless steel, which is beautiful and easy to clean;
4. The gland plate is made of high-density PVC, which is wear-resistant and compressive-resistant and has a long service life;

Here is the semi automatic drum press capping machine youtube video working process in our factory for your reference!!

CDYG-B1 Semi-Automatic Paint Bucket Capping Machine Parameter

Model CDYG-B1
Filling Speed 80~120 bottles/hour
Air pressure 0.5~0.7Mpa
Dimension(mm) 1500*450*1400
Net Weight(kg) 90kgs

Semi-Automatic Drum Press Capping Machine Features

1. The capping machine is an important part of the production line, which completes the capping of the counterweight barrel.
2. The capping machine is a one-time capping to ensure the tightness of the capping and the flatness of the cap after capping.
3. CDYG-B1 Semi-automatic drum press capping machine positions the heavy barrel directly below the capping plate, and then performs capping work after positioning, stepping on the capping foot switch to perform capping. It is suitable for the gland of oil paint, latex paint, and other plastic barrels.

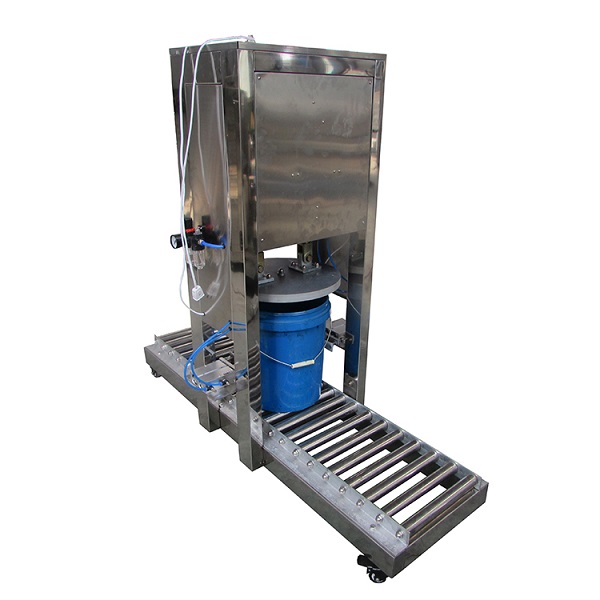

semi automatic capping machine

Paint Bucket Capping Machine Installation And Debugging

1. First, carefully check whether the air path and connecting wires are loose or fallen off. Check whether the equipment has been damaged due to collision during transportation or whether other screws have become loose and fallen off.

2. Connect the air path. If it is equipped with filling equipment, the circuit and air path are generally installed on the filling equipment. Just connect the photoelectric switch and gas line.

3. After connecting the power supply and air circuit, adjust the height of the pressure head according to your own needs, so that the bottle is right in the middle of the pressure head when capping.

4. Adjust the distance between the pressure head and the bottle shape. Place the bottle on the platform, adjust the pressure head to a distance of 1-2mm from the top of the bottle, put the bottle cap in place and test it to see if the pressed cap is suitable. Adjust slightly. The head can adjust the rotation speed of the head according to the tightness of the bottle cap.


Semi-automatic paint drum capping machines are widely used in the coating industry. It can not only improve production efficiency and reduce labor costs, but also ensure the sealing of paint barrels and prevent leakage and contamination. At the same time, the machine is easy to operate and requires no professional skills, allowing operators to get started quickly.

In short, the semi-automatic paint drum capping machine is an efficient and safe machine and equipment. Its application can greatly improve the production efficiency and product quality of the coating industry, and ensure the safety of workers. With the continuous advancement of technology, it is believed that this kind of machine will be more widely used in the future.
