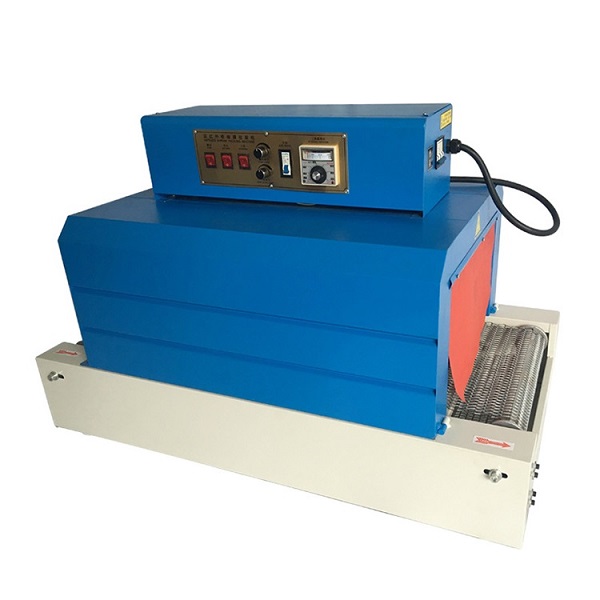

BS-4020 Thermal Film Shrink Wrap Tunnel Packaging Machine

This BS-4020 thermal shrink packaging machine adopts far-infrared tube heating, energy saving and high efficiency, stable and controllable shrinking temperature and motor transmission speed, wide adjustment range, instrument display, and roller auto-transmission device.


The BS-4020 thermal shrink packaging machine adopts electronic stepless transmission, and there is no limit to the length of the package. Using the principle of heat shrinkage, the packaging material can be quickly shrunk to the required size to form a tight and neat package. The shrink wrap packing machine is stable and reliable, with long service life and low noise.BS-4020 Heat shrink tunnel machine can continue working and is suitable for PP PVC POF PET film shrink packaging.

heat shrink packaging machine

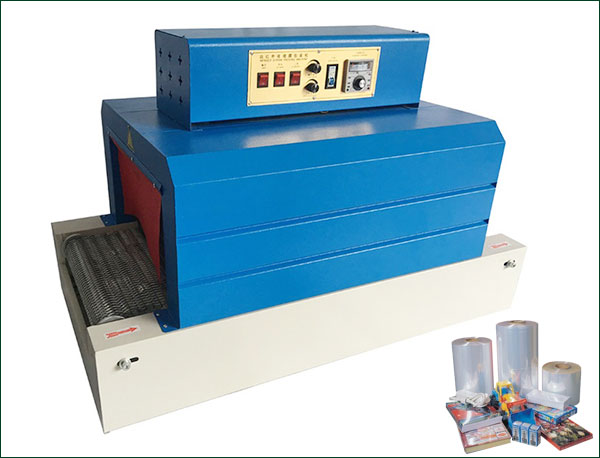

BS-4020 Heat Shrink Packing Machine

1. It’s suitable for PVC, POF, and PP shrink film;

2. Intelligence temperature control and strong turbine motor;

3. Conveyor is an alternative with Aluminum Roller or Teflon Mesh Overlay;

4. BS-4020 Heat shrink machine adopts a jet structure and is suitable for batch shrink production of software, biscuit, printing, pharmacy and floor, chinaware, beverage, beer, etc.

Here is the heat shrink packaging machine youtube video working process in our factory for your reference!!

BS-4020 Heat Shrink Wrapping Machine Parameter

Model BS-4020
Voltage 220V/50-60HZ
Power 5KW
Tunnel size(mm) 800L*400W*200H
Temp. Range 0-300℃
Max.Load 10KG
Speed 0-10m/min
Machine Size(mm) 1100L*570W*730H
Weight 60KG
Conveyor Style Net style, Chain style
Material PVC PP POF
Thickness(mm) 0.02-0.06 0.02-0.04 0.03-0.1
Heating time(s) 5-10 6-12 8-16
Shrink temperature(℃) 110-130 130-170 130-170

heat shrinked products

Thermal Shrink Packaging Machine Features

Chain conveyor belt
High-quality chain conveyor belt conveys smoothly;

Control Panel
Control machine switch, temperature control, inching, easy to operate;

High-temperature resistant dust cloth
High-quality materials are used to protect the uniform temperature in the furnace;

High-temperature furnace
Using quartz far-infrared heating with wind circulation, the heating is rapid and uniform;

Ventilation hole
The use of double cooling rings ensures the stable cooling of the machine for a long time to ensure the stable operation of the machine;

heat shrink wrap packaging machine

BS-4020 heat shrinking machine is a powerful and easy-to-operate high-efficiency shrinking equipment. It has a high degree of automation capability and an accurate and stable control system and can be widely used in product packaging in various industries. Its outstanding performance makes it a popular device in the industry, providing enterprises with convenient and fast packaging solutions.
