A02 Small Pneumatic Paste Liquid Filling Machine

The A02 Small pneumatic paste filling machine is an improvement from the A03 manual filling machine. It uses compressed air as the power to make the operation more convenient. This product is specially designed for hospitals, laboratories, beauty salons, small and medium-sized enterprises, etc.

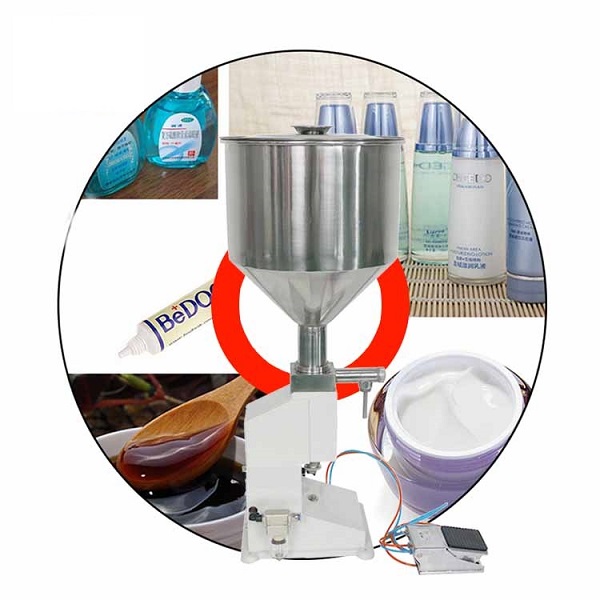

A02 small filling machine is very suitable for filling small-meter liquids and pastes. This liquid filling machine is suitable for the filling of liquids, ointments, small bottles of hotel shampoo, shower gel, and other materials. Users can set the filling capacity according to their needs.

small filling machine

Liquid Filling Machine Advnatges

Accuracy +-1%;

stainless steel casters;

Non-drip brushed, good sealing;

Air pressure precision adjustment;

The whole machine is made of 304 stainless steel;

Corrosion resistance, high brightness, more beautiful;

Here is the small filling machine working process youtube video in our factory for your reference!!


Pneumatic Filling Machine Technical Parameters

Model: A02
Working Method: Pneumatic
Working Speed: 20-60 times/min
Filling Range: 5-50ml,10-100ml
Filling Nozzle Diameter: ≥4mm
Filling Accuracy: ±1%
Hopper Volume: 10L

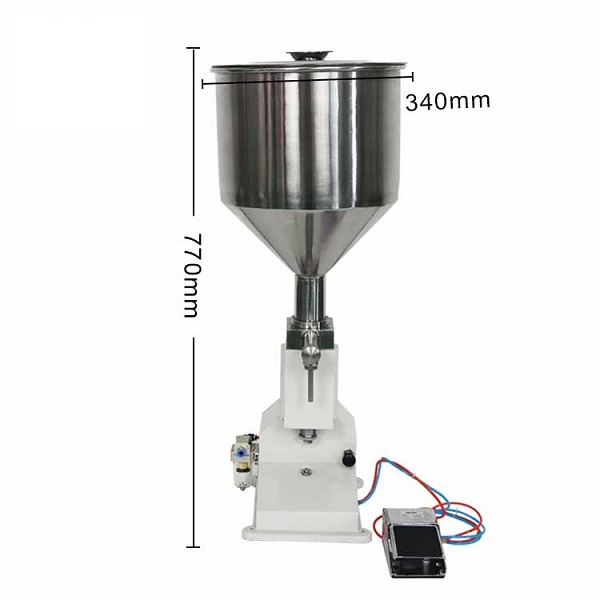

Packing Size: 34*34*78cm
Gross Weight 13kg

liquid fillig nmachine

A02 Pneumatic  Filling Machine Features

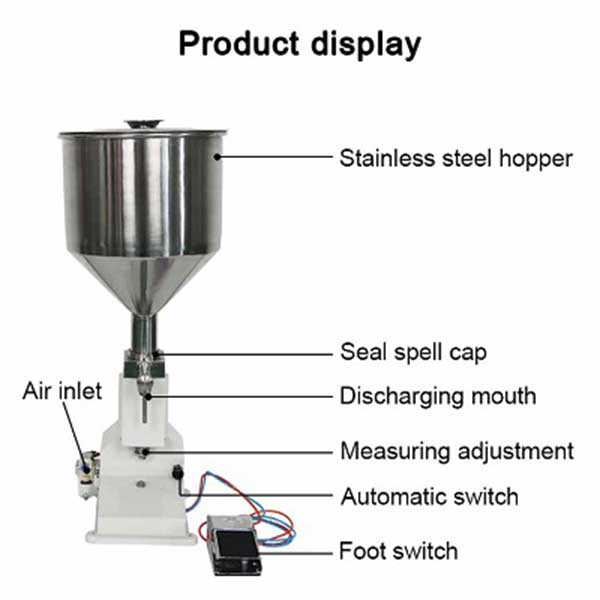

1.Two sizes of nozzles can be replaced. Its nozzle is 4mm and 8mm;

2. The filling range is 5-50ml,which can also customized to 10-100ml;

3.10L Large capacity hopper and the material is Food Grade 304 Stainless Steel;

4. This A02 Small pneumatic paste filling machine can fill paste, cream, and liquid, as long as with fluidity;

small filling machine
