Semi Auto L Type Heat Shrink Packing Machine With Sealing & Cutting

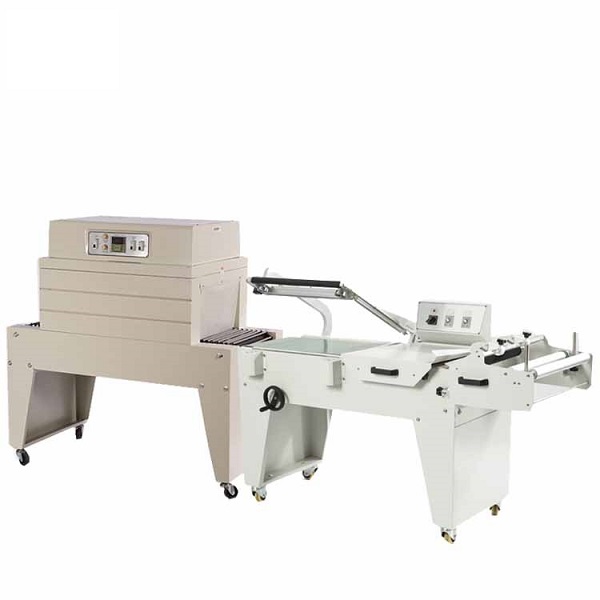

The 450L+BS-4020 L-type shrink packaging machine can complete the cutting and sealing of the shrink film at one time, and shrink and wrap the product or package tightly.


The pneumatic L-shaped shrink packaging machine can complete the cutting and sealing of the shrink film at one time, and the shrink film wrapped on the outside of the product or package will be heated to shrink and wrap the product or package tightly, fully displaying the appearance of the item and improving the product’s sales. Sex, increase beauty and a sense of value. It is suitable for heat-shrinkable label packaging of glass bottles, plastic bottles, paper cups, and other containers in the food, beverage, pharmaceutical, cosmetic, and other industries after sleeve labeling of the bottle body or cup body.

L type shrink packing machine

Heat Shrink Packing Machine Advantages

1. High-cost performance;

2. High efficiency and stability;

3. Seal firm and shrink perfectly;

4. Energy saving saves electricity;

Heat Shrink Wrap Packing Machine Parameter

 Model 450L
Voltage 220V/50-60HZ
Power 1.2KW
Packing speed 10-15pcs/min
Max. sealing size 450*350mm
Machine Size(mm) 1400L*750W*860H
Weight 115KG
Sealing cutting time 0-3S

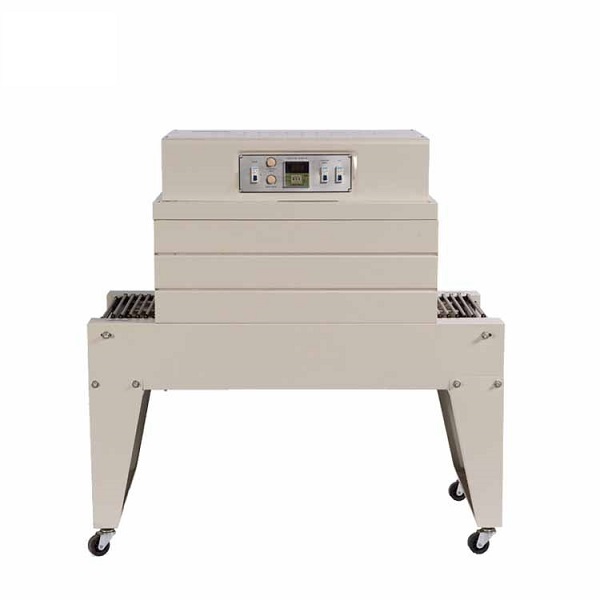

Model BS-4020
Voltage 220V/50-60HZ
Power 6.8KW
Tunnel size(mm) 800L*400W*200H
Temp. Range 0-300℃
Max.Load 10KG
Speed 0-10m/min
Machine Size(mm) 1100L*700W*1370H
Weight 80KG

Her is the semi-auto shrink wrap packing machine working process in our factory for the A4 paper youtube video in oru factory for your reference!!

Heat Shrink Packing Machine Details

Leakage Protection
Leakage protection device, one more layer of protection, so that you can use the machine more safely;

Pinwheel punching
The mold base roller is thicker and bears more weight, it is convenient to change the film, the design of the needle wheel is novel, and the adjustment of the air hole is convenient;

Bow structure
Strong Bow Construction High-quality material, unique design, beautiful appearance. The equipment adopts the well-known Sino-foreign joint venture conveyor belt with high quality and wear resistance;

Adjustable table
The height of the conveyor table can be adjusted at will according to the product, and the operation is simple and convenient! The emergency stop switch control makes the packaging sealing and cutting more controllable;

Temperature time checklist

Material PVC PP POF
Thickness(mm) 0.02-0.06 0.02-0.04 0.03-0.1
Heating time(s) 5-10 6-12 8-16
Shrink temperature(℃) 110-130 130-170 130-170

Thermal Shrink Packaging Machine Features

1 Stainless steel heating tube, two-way heat circulation air, uniform, and constant heat;

2. The packaged product can be sealed and not easy to scatter. It is suitable for tight packaging and pallet packaging of multiple items;

3 The speed is adjusted by the electronic governor, and the conveying speed can be adjusted arbitrarily, the conveying stability and good shrinkage effect;

4 Digital display computer automatic temperature control, small temperature difference, low noise; air transport system; designed air duct system, the product is heated evenly, high-power air transport motor, uniform hot air in the shrinking furnace;
